Log in to SharePoint using your Dynamics CRM credentials if you have Microsoft Dynamics 365 with Admin access.

After signing in, the Office 365 main page will display a list of Office 365 products. Click on SharePoint to manage sites and documents.

You will see the details of existing sites, if any. [1]

To create a new site, click the Create Site option. A sidebar will open on the right side.

 Choose between two options:

– Team Site: Use this to store and manage documents and files collaboratively.

– Communication Site: Use this for sharing information broadly.

Click on Team Site to configure it for document management. [2]

After selecting Team Site, fill in the required details, such as site name, description, and permissions.

Click Next to finalize and save the site settings. [3]

Once the site is created and authenticated in the CRMJetty Portal, it will appear in the list of available SharePoint sites.

You can now sync documents and manage them seamlessly between SharePoint and CRMJetty. [4]

By following these steps, you can successfully set up a SharePoint site for document synchronization.

1. Enter Registered Email Address: Start by entering the Admin registered email address in the designated field. [1]

Click “Verify”: Click the “Verify” button to validate the Admin email address.

– If the email is valid, Admin will receive a “Set Password” link in the Admin registered email inbox.

Note: If Admin does not receive the email, check the email you entered or please try another email address or contact a CRM-authorized person for assistance.

1. Check the registered Email: Access the registered email account, check the “Set Password” email sent to the Admin , and click on the link provided in the message. [1]

2. Create a New Password: Clicking the link will redirect the Admin user to the “Create New Password” page, where they can enter and confirm their desired password to complete the setup. [1]

1. Enter New Password: On the “Create New Password” page, type the desired new password in the “New Password” field. [1]

2. Confirm Password: Re-enter the same password in the “Confirm Password” field.  [1]

Click “Save”: After entering and confirming the password, click the “Save” button.

– If successful, Admin will be redirected to the Admin login screen.

1. Enter Login Credentials: On the Admin login page, enter the registered Admin email address and the password set via the link sent to the registered email.

2. Click “Login”: If the credentials are correct, the Admin will be redirected to the Dashboard.

– Forgot Password: If the Admin has forgotten their password, click the “Forgot Password” link.

1. Enter Registered Email Address: On the “Forgot Password” page, enter the registered Admin email address and click the “Send” button.

– If the email is valid, a “Password Reset” link will be sent to the Admin ‘s registered email. [1]

2. Click the Reset Link: Click the link in the email to be redirected to the “Create New Password” page.

– Follow the instructions in Step 3- Create a new password to set a new password. [1]

Note: The password reset link will only be sent to the registered email address associated with the Admin account. If the Admin does not receive the email, please contact a CRM-authorized person for assistance.

Once the Admin successfully logs into the Admin Portal, the Admin first needs to set up the SMTP  configuration for email.

– Authentication Type: First, the Admin needs to select the Authentication Type according to the requirement.

1. Credential/App Password: In this option, Admin needs to enter a username and password for specific apps like social media, Outlook, Gmail, Apple Mail, etc.

2. Google OAuth: Auth is a security protocol that allows applications to access Admin data without requiring passwords. This is integrated with Google services like Gmail, Google Calendar, Google Contacts, etc.

In this option Admin enters the selected app Email ID and password (for ex: Outlook, Gmail, Apple Mail, etc.)

For example: Admin uses the Gmail ID and Password for SMTP configuration. [2]

To establish a reliable connection for sending emails Admin needs to add the following details:

– From Name:  Enter the name that Admin wants to display in the receiver’s Email.

– From Address: Enter the email address that Admin wants to display in the receiver email.

– SMTP Host: Enter the host address of an email.

– SMTP Port: Enter the port number used by outgoing mail servers.

– Username: Enter the app username/email.

– Password: Enter the password of the email/username entered above.

Note: The Admin has the flexibility to use any set of credentials for the SMTP configuration, regardless of the credentials used to log into the Admin portal. This allows the Admin to choose credentials freely without being restricted to the ones used for portal access.

After entering the details click on the “Save” button.

In this Authentication type, the Admin can connect Google Account with the portal by entering Client ID and Client secret. [3]

– Client ID: Enter Admin client ID.

– Client Secret: Enter Admin client secret.

After entering the ‘necessary’  details, click on the “Save” button to complete the SMTP settings.

Send Test Email:  Click on the “Send Test Email” button to initiate a test of the SMTP connection.

Click Sent Mail: In the popup box, the Admin should enter the recipient’s email address and a description, then click the “Send Mail” button. [4]

Connection Status

Connected: If the test email is received successfully on the above-entered mail, then the  SMTP configuration has been established correctly.

Not Connected: If the email is not received, the Admin should verify that all SMTP configuration details—such as the SMTP Host, Port, Username, and Password—are entered correctly or not.

Note: Each SMTP server has different authentication methods, so the Admin must follow the specific rules of their mail server.

Popular SMTP Server Configurations

  Microsoft Exchange:

      – Server: smtp-mail.outlook.com

       -Port: 587

Yahoo:

    -Server: smtp.mail.yahoo.com

    -Port: 587

Gmail:

     -Server: smtp.gmail.com

    -Port: 587

Hotmail:

     -Server: smtp.live.com

    -Port: 587

AOL:

  – Server: smtp.aol.com

  – Port: 587

Please note that these configurations are commonly used,  but the Admin should always check with the respective email service provider for the most current and accurate SMTP server settings

After setting up the SMTP configuration, the Admin must configure CRM authentication to connect CRM data with the Portal.

To do this the Admin should navigate to Settings > Portal Setting > CRM Authentication. [01]

To access the CRM authentication screen, the user must validate their identity through the OTP verification process.

OTP Verification: On the CRM authentication page Admin will see an  OTP verification screen.  The Admin needs to enter the OTP received on the registered email ID.[1]

Note: Only super Admin receives the OTP, on their registered mail Id.

Once the verification process is complete then the Admin needs to configure the CRM authentication by  entering the  following details: [2]

– Service URL: Enter the URL endpoint for the service.

– Environment: Admin can select the two types of Environment.

– Live: the production environment where real-time data and transactions occur.

– Sandbox: A testing environment for developing and testing applications without affecting live data.

– App ID: Enter the application identification number.

– Client Secret: Enter the secret key for client authentication.

 After entering the required details, click on the “Save” button to complete the CRM Authentication process.

Test connection: By clicking on the “Test Connection” button the portal verifies whether the entered credentials are correct or not. [3]

Connection Status:

Connected: If the connection is successful, then the Admin can see the success token message on the right side of the page. [4]

Not connected: If the connection is unsuccessful, the Admin should verify all the details – such as the service URL, App ID and Client Secret – are entered correctly. If the issue persists, the Admin should contact the CRM authorized person for further assistance.

The Admin has the ability to modify the entire CRM structure as needed. In this case, two options are available: Preserve Data or Reset Data.

This option retains the design structure but removes CRM-specific data for the new portal. All pages, forms, lists, menus, and sites will be preserved. However, the Admin will need to reconfigure certain elements, such as:

– Lists, Forms, and Widgets containing CRM-based settings like Recent Activities, Counters, and Data Cards.

Roles from the previous CRM will be transferred to the new CRM, but since the entity and user relationships will differ, access rights will need to be reassigned. Although the role and contact data will be preserved, they will not be connected to the newly authenticated CRM.

Additional considerations in Preserve Data:

– Layouts will remain as they are, ensuring that your portal design is preserved.

– Entity data will be different because the CRM data and connections are not carried over.

– User and relationship data from the previous CRM will not apply to the new CRM setup. Roles and contact relations from the old CRM will remain the same, but their connection to the new CRM will not be established.

– If roles from the old CRM were connected to the new CRM, they will have different role IDs and permissions in the new instance.

This option clears all data from the portal, removing pages, forms, lists, templates, and site configurations. The Admin will start with a clean slate, needing to set up everything from scratch, including layouts, widgets, and CRM connections.

Scenarios to Consider

Fresh Instance (No CRM Authenticated):

If there is no prior CRM authenticated, successful authentication of the CRM will result in the creation of:

– A default role connected to contact relations.

– Access to the case entity.

– Default pages, lists, and forms such as Registration, Login, Forgot Password, and basic CRUD pages for the entities.

New Instance (CRM Authenticated):

If a CRM is already authenticated and the Admin attempts to change the CRM, a warning popup will appear, informing the Admin about the upcoming changes. The Admin can choose between Preserve Data or Reset Data.

– Upon successful authentication, all data from the Role entity will be cleared, and portal access will be removed from existing contacts.

– Layouts and configuration will be preserved if ‘Preserve Data’ is selected, but the relationships between entities will need to be reassigned.

Change in Current Instance:

When changes are made to the Service URI or Organization ID, the portal will automatically detect this and issue a warning. Based on the Admin ‘s choice to preserve or reset, all portal data—including layouts and configurations—may be removed.

The Super Admin can assign multiple roles to sub-Admin , each with different responsibilities. To create a role, navigate to Settings > User Settings > Admin Roles. [1]

Note: These roles apply only to the Admin portal. Both Super Admin and sub-Admin with Admin role permissions can add new roles.

On the Admin role page Admin can view Role Name and Status. On the right side of the page Admin can view the “+Create” button. By clicking on the button Admin can add a new Admin role for the Admin portal. [2]

Creating a New Role

On the “Add Role” page, the Admin needs to enter below details:

1. Role Name: Enter a unique name for the sub-Admin role.

2. Status: Click on the toggle button to set the role as “Active” or “Inactive.”

3. Description: Provide a brief description of the sub-Admin role for future reference. [3]

4. Permissions: Select the checkbox next to each  entity to set the permissions for  View, Add, Edit and Delete actions. The sub-Admin access to specific entities will be determined by these permissions. [4]

Note: Sub-Admin users can only access the entities that the super Admin has allowed.

Edit Admin Role:

To edit an Admin role, navigate to the Admin role list and click the three dots (…). This will reveal the Edit icon. Clicking the icon will redirect the Admin to the edit role page. [5]

On the Edit page, the Admin can modify the role’s name, status, description, and permissions as needed. [6]

 After making the changes, click the “Save” button to apply the updates.

Delete Admin Role:

To delete an Admin role, go to the Admin role list and click the three dots (…). Click the delete icon, and a pop-up will appear. [7]

In the pop-up, click the “OK” button to permanently delete the role from the portal, or click the “Cancel” button to keep the role.[8]

The Super Admin can add multiple sub-Admin users for different responsibilities. To do so navigate to Settings > User Setting > Admin Users Setup. [1]

Note:. This setup applies only to the Admin portal.   Super Admin and sub-Admin with Admin user setup rights can add new users.

Admin User Card: On the Admin user page, the Admin will be able to see the card view with the below-mentioned details. [2]

– Name

– Role

– Email Id

– Last login information

The Super Admin can assign different roles  to various sub-Admin users. To add a new sub Admin follow these steps:

– Create New User: Click on the “Create” button to add a new Admin user. [3]

– Enter User Details:  By entering the following details super Admin can configure the sub Admin user.

– Name: Enter a unique name for the sub-Admin user.

– Email: Enter a registered email ID for sub-Admin .

– Phone No: Add a support contact number for assistance. (Optional)

– Status: Click on the toggle button to set the user as “Active” or “Inactive.”

– Photo: Upload the profile photo for identification. (Optional)

– Roles: Select a role for the sub-Admin from the drop-down menu. [4]

– Note:  The super Admin can create roles from the “Admin Roles” panel, and any roles created there will appear in the Roles drop-down. By default, the ‘Admin ‘ and ‘Sub-Admin ‘ roles are available.

Note: Sub-Admin users who have rights to add a new user can only add users. Sub-Admin with the rights to add new users can only add users and cannot modify their own permissions.

Edit Sub-Admin User

– To update a sub Admin ’s details, click the three dots (…) in the card view, click on the “Edit” icon to be redirected to the edit page. [5]

– Here Admin can view the “Edit” button by clicking on the edit button, Admin is redirected to the edit page. [6]

Note: The Super Admin cannot modify the sub-Admin ’s email address during editing.

Admin can customize the portal’s name, logo, and favicon through the General Settings. To do this, navigate to Settings > Portal Settings > General Settings.

Admin can set the Admin portal by entering the following details.

– Portal Name: Enter the name of the Admin portal.

– Portal Logo : Upload a logo that will be displayed in the top left corner of the Admin interface.

– Portal Favicon: Upload a favicon that will be shown in the browser tab for the Admin interface.

Admin can customize the theme colors, font style, and font colors by navigating to Settings > Portal Setting >  Admin Theme Customize Theme Elements: [1]

Customize Theme Elements:

– Base Font Family: Choose a font for the main body text and menus.

– Title/Heading Font Family: Choose a font for all the headings and titles throughout the portal.[2]

Color Customization:

– Theme Background Color: Choose a background color for the overall body of the portal.

– Foreground Color: Select a background color for content areas.

– Primary Color:  Choose a primary color used throughout the portal, including text and icons.

– Success Color: Select a color to indicate successful actions (e.g., toast notifications).

– Danger/Fail Color:  Select a color for failed actions or errors (e.g., toast notifications).

– Warning Color:  Select a color for warnings (e.g., toast notifications).

– Base Font Color: Choose a color for the body text and main content descriptions.

– Link Color: Set the color for all text links.

Click the Save button to apply the theme and font updates. To revert to the default theme settings, click the Default Theme button.[3]

The Portal Sync feature ensures that the CRMJetty Admin portal stays updated with the latest data from the Admin CRM system. This means that whenever the Admin updates entities, adds new languages, or modifies specific data within the CRM, it’s essential to synchronize with the portal to maintain data consistency.

Admin can perform synchronization using options like Entity Level Sync for syncing CRM data at an entity level, or Portal-Level Entity Sync to synchronize specific portal entities. They also have the flexibility to Sync All Entities at once or Sync Specific Entities based on their requirements. Additionally, Language Level Sync allows Admin to sync newly added languages to the portal.

To synchronize the CRM data, the Admin should navigate to Settings > Portal Settings > Portal Sync.[1]

Portal Sync Options:

On the Portal Sync page, the Admin has access to three key synchronization options:

1. Entity Level Sync

2. Language Level Sync

3. Portal-level  Entity Sync

     – Sync All Entities

     – Sync Specific Entity

If Admin have made any changes at the entity level from CRM

The Admin should use this “Entity level Sync” option if the Admin modifies the structure or any entities (like accounts, contacts, leads, etc.) in the CRM system.

If the Admin performs such operations as adding new fields, modifying existing ones, or even deleting fields. So the Admin needs to use this entity sync option.

The Admin can perform the Entity level sync by clicking on the “CRM Sync” button that is shown in the screenshot.[2]

Once the entity syncs successfully, the Admin can view the success toggle message on the right side of the page as shown in the screenshot.[2.1]

If Admin have enabled any new language from CRM

If the Admin enables a new language in the CRM, they need to ensure that the newly added language is synchronized with the CRMJetty portal. This will allow the Admin to properly configure the language in the portal so that the content is correctly translated.

The Admin can perform the “Add new language sync” by clicking on the CRM Sync button as shown in the screenshot. [3].

Once the language “successfully” syncs the Admin can view the success toggle message on the right side of the page. [3.1]

If the portal doesn’t find any new language in the CRM system then the Admin can view the “No language available to sync” toggle message on the right side of the page as shown in the below screenshot.  [3.2]

This  feature allows Admin to update portal data based on changes made at the entity level in the CRM system. When entities or specific fields are modified within the CRM, Admin needs to synchronize those updates to the portal using this feature.

There are two synchronization options available: [4]

1. Sync All Entities

This option allows Admin to sync all entity-level data to the CRMJetty portal in one action, ensuring that all entities are updated simultaneously.

– To perform this sync, select the Sync All Entities radio button and click the CRM Sync button. [5]

2. Sync Specific Entity

Instead of syncing all entities, Admin can choose to sync a specific entity (e.g., accounts or contacts). This is useful when changes are limited to one or a few entities, allowing for targeted updates without affecting other data.

– To perform this sync, select the Sync Specific Entity radio button.

– A Select Entity to Sync dropdown will appear. Choose the specific entity to update, and then click the CRM Sync button. [6]

Note: The synchronization process may take a few minutes. Please avoid logging out or making changes in the CRM system during this time.

The CRMJetty portal allows the Admin to manage various email templates for different actions . To configure these templates, the Admin should navigate to Settings > Portal Setting > Email Templates. [1]

Viewing and Managing Email Templates

On the Email Templates page, Admin can view default templates that are pre-created.  The Admin can modify these templates or create a new one as needed. [2]

CRMJetty portal provides 8 types of email action templates as follows:

1. Admin User OTP: Sends a One-Time Password  (OTP) to the Admin for secure login.

2. Approve Portal User: Notifies the user that their portal access  has been approved.

3. Forgot Password: Send a link to reset the user’s password.

4. Forgot Username: Helps the user to recover their username via email.

5. Registration: Confirms the user’s registration and provides next steps.

6. Send Email to From Respondent: Forward the respondent’s email to the recipient.

7. Two-Step Verification: Sends a verification code for two-step authentication.

8. Verify Portal User: Confirms the user’s identity to verify their portal account.

Create New Template :

To add a new template:

1. Click the Create button to open the Create Email Template page. The Admin can add multiple templates for a single action. [3]

2. Fill in the required details:[4]

– Name: Enter a template name to identify the email action.

– Subject: Enter the subject of the email.

– Status: Set the template as ‘Active’ or ‘Inactive’.

– Email Action: Select the action from the drop-down menu. Below mentioned is a list of the dropdown menu.

     – Admin User OTP

     – Approve Portal User

     – Forgot Password

     – Forgot Username

     – Registration

     – Send Email to Form Respondent

     – Two Step Verification

     – Verify Portal User

Note: The email actions are pre-defined, super Admin can not add more action in the drop-down.

– Body: In the email body the Admin needs to write the email content also the Admin can use editing options for formatting.

– Admin needs to enter the required parameters in the description box that is shown below the email body.

 Note: Based on the email actions the parameters will be shown.

For example: Admin creates a new template for “Approved Portal User” then the Admin is required to add the following parameters. [4]

– [FULLNAME]:  It will be replaced with the portal user’s “First Name”.

– [EMAIL]: It will be replaced with a user email ID.

– [PORTALNAME]:  It will be replaced with Portal Name.

Note:   Ensure all mandatory parameters are included in the template for each action.

3. After completing the template, click Save. A pop-up message will appear: “Old email will be inactive once the Admin activates this template.” Click OK to activate the new template, which will deactivate the previous one. [5]

Note: If Admin creates a new template for the same action, the previous template will automatically become inactive. Admin users can select the templates in the Form widget configuration.

Editing an Email Template

Admin can modify default email templates by:

1. Clicking the three dots (…) next to the template on the listing page.

2. Selecting Edit to open the Edit Template page. [6]

3. Editing the Name, Action, Subject, and Description fields as needed. [7]

Note: The email action type and status cannot be edited.

Deleting an Email Template

To delete an email template:

1. Click the three dots (…) on the email template listing page.

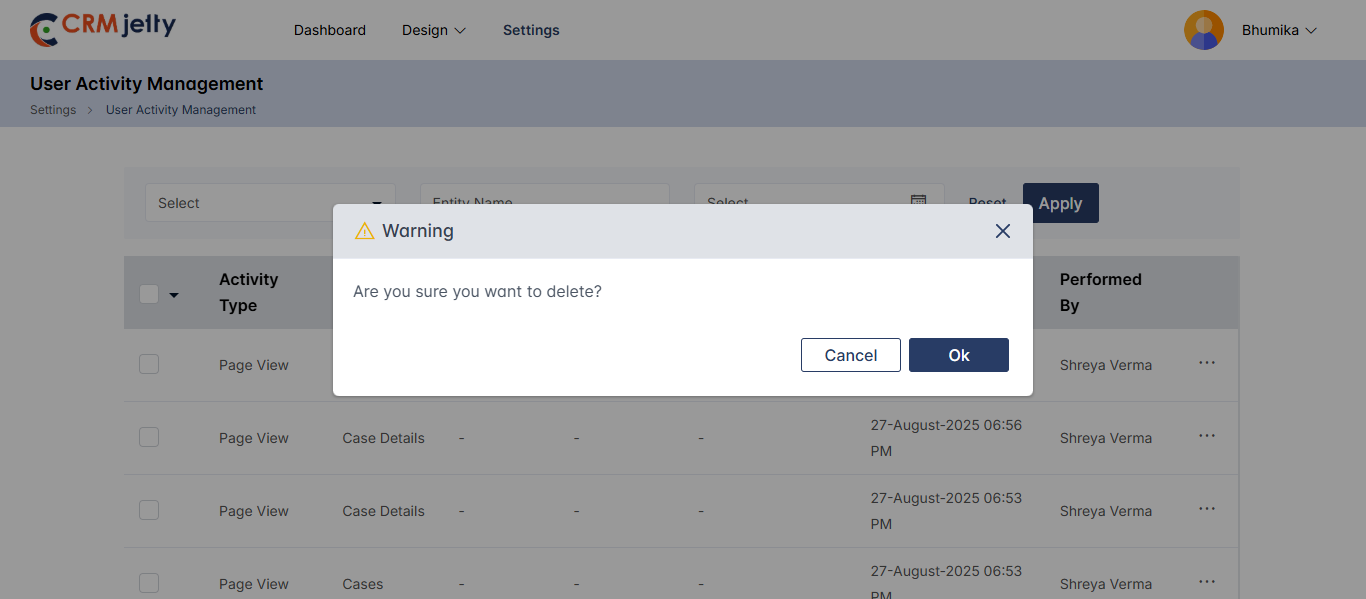

2. Select Delete. A warning pop-up will appear. [8]

3. Click OK to permanently delete the template, or Cancel to keep it. [9]

Note: Only active templates can be deleted from the portal.

The Admin can design a “Form” and “List” for the portal users from the Portal User Settings. This Form and List will be shown to the users who are added by the Admin from the backend.

By using this form, Admin can directly add portal users from the backend.

To design a List and Form the Admin will navigate to Settings >  Portal Setting >  Portal User Settings [1]

Note: The form and list will be displayed in the Admin backend only.

List Page:

The Admin can see all the “List” fields on the right side of the page, to create a “List” the Admin can search for fields or simply drag and drop them to the page. The Admin only adds the 5 fields to design a list. [2]

Note: The Admin cannot remove the required fields. If the Admin is trying to remove it, they have shown a toggle message on the right side of the page.

Form Page:

The Admin can add/Edit the portal user form for the customer portal, for that click on the Add/Edit radio button which is highlighted on the image. [3]

To design a form the Admin can follow Add Section > Add Grid > Add Fields.

Add Section: On the left side of the page, the Admin can view the sections and by clicking on the “+” icon the Admin can add a new section as shown in the mentioned screenshot. [4]

Add Grid: After adding the section the Admin needs to select the grid, for that, the Admin needs to click on the “Add Grid” button as shown in the mentioned screenshot. [5]

By clicking on the button, the Admin can view the different grid options, when selecting the grid it will directly add to the selected section as shown in the below screenshot. [6]

Add fields: After adding the grid the Admin adds fields to the grid, the Admin needs to drag and drop the fields to the section as shown in the screenshot. [7]

Note: The grid supports only one field per box. Admin should ensure the sections are designed accordingly.

Once the form design is complete the Admin needs to click on the “Save” button.  The Admin can also view the form by clicking on the “Preview” button. [8]

Preview:

When the Admin adds a portal user through the Admin Portal, the configured form and list will be displayed.

To view form and List Navigate to the Settings > User Setting > Portal User Setup section, where the Admin can view the form and list that have been previously configured. [9] [10]

Admin can set permissions that determine what actions portal users can perform and what information they can access within a system.

To role for the portal user navigate to Settings >  User Setting >  Portal User Roles. [1]

Creating a Role:

On the portal user role page, the Admin can view the pre-existing “Default” role which is set up with standard permissions and access controls. [2]

Admin can modify that default role or add a new role. To add a new role Admin needs to click on the “Create” button. [3]

– By clicking on the create button the Admin will be redirected to the “Add Role” page where they can see the below-mentioned fields.

 – Role Name: Enter the name for the role.

 – Status: Select the status role “active” and “inactive”.

 – Is Default: Enable this toggle to set this role as a default.

 – Description: Provide a short description for the role.

Entity Permissions:

After adding basic details, the Admin can manage entity permissions for portal users by defining their roles. To define the role the Admin needs to follow below steps:

– Entity name: Admin can view the CRM portal entity names.

– View: By clicking on the “View” checkbox Admin allowed the portal user to view this particular entity.

– Relationship Type: The Admin can set the relationship type for the portal user based on the following four options:

1. Contact: Relationship with individual contacts.

2. Account: Relationship with specific accounts.

3. Account to My Records: Relationship with accounts linked to the Admin ‘s own records.

4. Account with All Records: Relationship with accounts that have access to all records. [4]

Relationship Type: A relationship type in CRMJetty defines how a portal user is connected to and interacts with data, such as contacts or accounts, within the system. It determines the level of access and visibility the user has to specific records based on their role and association, such as individual contact records or broader account-based records. [5]

– Contact: Portal users can only access data related to their individual contact profile.

– Account: Portal users can view and manage records tied to their associated account.

– Account with My Records: Portal users can access their individual records within the associated account.

– Account with All Records: Portal users can view and manage all records within their associated account, including other users’ records.

– Contact Relationship: It refers to how a portal user interacts with data based on their individual contact profile. This type of relationship limits access to records or data directly linked to the user’s contact, allowing personalized data access. [6]

– Account Relationship: It defines how a portal user interacts with data based on the organization or account they are associated with. Instead of limiting access to personal contact data, it allows users to access data related to their entire account, which may include other users or records linked to that account. [6]

– Add: Click the checkbox to allow portal users to add data.

– Edit: Click the checkbox to allow portal users to edit data.

– Delete: Click the checkbox to allow portal users to delete data.

– Enable Product: Click the checkbox to allow portal users to product-related actions.

– Enable Hierarchy: Click the checkbox to allow portal users to have hierarchical permissions. [7]

Documents Permissions: Document Permissions in CRMJetty define the level of access and control portal users have over documents and files within the portal. The Admin can set specific permissions to regulate what actions users can perform, such as viewing, adding, deleting, or managing files and folders. Each permission type allows the Admin to tailor document access according to the user’s role in the portal. [8]

– Entity Name: The Admin can view the names of CRM portal entities.

– Documents: Click the checkbox to allow the portal user to manage files and folders within the portal.

– Document Access: Click the checkbox to grant the portal user permission to access and view documents.

– File Add: Click the checkbox to give the portal user permission to upload new files.

– File Delete: Click the checkbox to give the portal user permission to delete existing files.

– Folder Add: Click the checkbox to allow the portal user to create new folders.

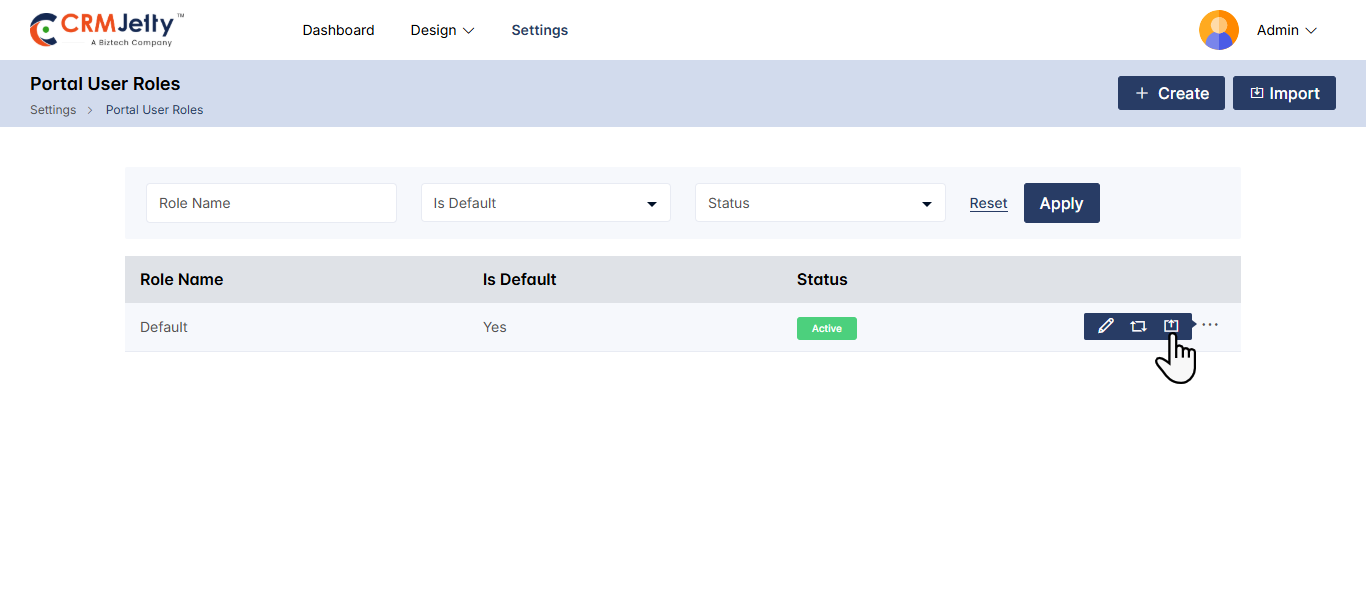

Editing & Deleting Roles:

Edit Role:

– To edit a portal role, navigate to the portal role list and click the three dots (…). This will show the Edit icon. Clicking the icon will redirect to the edit role page. [9]

– Admin can update all the details and after updating the details click on the “Save” button.

Delete Role:

– To Delete a portal role, navigate to the portal role list and click the three dots (…).  [10]

– By clicking on the dots the Admin can see the Delete button and by clicking on that they can see one warning (pop-up) message. [11]

– Click on the “Ok” button and the role will be permanently deleted from the portal.

Note: Default roles cannot be deleted.

Replace Role:

– The Admin can replace a role assigned to users (contacts) with another role from the list of portal user roles.

– To replace the role the Admin needs to click on the “Replace Role” icon from the (…) dots. [12]

– Then one pop-up will appear that allows the Admin to select a new role from the drop-down list. Once the Admin chooses a new role, it will replace the current role and be assigned to all contacts (portal users). [13]

Set as Default Role:

– The Admin can set the default role with another role from the list of portal user roles.

– To set a default role, the Admin needs to click on the “Default Role” icon from the (…) dots. [14]

– When the default button is clicked, a warning pop-up will appear with the warring message. Admin can either click “OK” to confirm, which will replace the default role with the selected one, or click “Cancel” to keep the current default role unchanged.

– After the default role is changed, the Admin can view the “Is Default” status set to “Yes”. [16]

Portal User Setup involves configuring and managing settings for users who access the portal. This setup ensures that users have the appropriate access, permissions, and functionality needed for their roles within the portal.

To manage a portal users the Admin will navigate to Settings > User Setting >  Portal User Setup. [1]

On the Portal user setup page, the Admin can view contact information which is created in the below-mentioned ways,

– Contact created from the CRM

– Contact created from the Admin portal

– Contacts that are registered from the Website.

To create a new contact from the Admin portal the Admin needs to click on the “Create” button. [2]

Create Contact:

– After clicking on the “Create” button Admin will be redirected to the Create Contact page.

– Enter the Portal Contact Details

Note: The “portal contact details” form will be shown as per the Admin created in the portal user settings. [3]

– The Admin needs to enter all the mandatory details to create a contact.

Note: If the Admin won’t select any role from the “Role” lookup list, so the contact will be created as “Default”

– Once the Admin fills all the information then they need to click on the “Save” button. By clicking on the save button the created contact will not receive any verification link.

Note: If saved as Not Approved, the Admin can later approve and generate credentials from the contact’s listing page.

– If the Admin clicks on the  “Save & Generate credential option”, the created contact will receive an email with the verification link. [4]

Bulk Update

1. CRMJetty Portal Approval: If the ‘User approval’ flow is enabled then Admin approval is required after registration. Consider the below cases for approval.

– Case-1: The Admin needs to select the Contact from the list manually (they can select one or multiple contacts) and click on the bulk action checkbox so they will be able to see the Approve button to send the verification link the Admin needs to click on the approve button. (credentials pending). [5]

– Case-2: Select Approved and click Save & Generate Credentials to approve and generate credentials, sending an access link via email. [6]

Note: Only Admin users with access can add contacts.

2. Enabling Portal Users: To give contacts access to the portal, the Admin can use the ‘Enable’ option to approve the portal user.

Generate Credentials:

– The Admin needs to select the Contact from the list manually. [7]

– Use the Bulk Action drop-down menu to select “Enable” for the contacts. This can include both newly added contacts and those previously disabled.

– After clicking the “Enable” button, a pop-up will appear. In this pop-up, the Admin needs to select the role to assign the same role permissions to the user. Once the role is selected, click the “Save” button. [7.2]

– In the compilation process, a popup will display the summary report for below-mentioned detail. [7.3]

– Selected User

– Disabled Users

– Conversion Pending

– Click Apply to generate credentials or enable access to selected content.

3. Disabling Portal Users: With use of this feature Admin can temporarily remove portal access by disabling user accounts.

– To disable the accounts, Admin needs to Select the contacts that need to be disabled from the portal.

– From the Bulk Actions drop-down menu, select “Disable.” button [8]

– A popup will display the summary report for below-mentioned detail. [9]

– Selected User

– Disabled Users

– Conversion Pending

4. Assigning New Roles : If an Admin needs to assign a new role to contacts then they can use the “Role New Assign” option.

– The Admin needs to Select the contacts that need to assign a new role.

– From the Bulk Actions drop-down menu, select “Assign New Role.” [10]

– Click “Apply” to open the Assign New Role popup.

– Choose the new role the Admin wishes to assign. [11]

– Click “Save” to assign a role for the selected contact. [12]

5. Sending Password Link: The Admin uses this option to send a password reset link to contacts so they can update their credentials.

– The Admin needs to Select the contacts that need a password reset link.

– From the Bulk Actions drop-down menu, select “Send Password Link.” [13]

 -A popup will appear showing the status of the password link delivery status.

Edit Contact:

– To edit a portal user, navigate to the portal user list and click the three dots (…). This will show the Edit icon. Clicking the icon will redirect to the portal user edit page. [15]

– Admin can update all the details and after updating the details click on the “Save” button. [16]

Unlock Contact:

If the admin has configured a security layer for portal users, including password complexity and lockout settings, users may get locked out after exceeding the allowed number of incorrect password attempts. In such cases, the admin can manually unlock the user account. This feature enables admins to restore early access to the portal for locked-out users, ensuring smooth operation without waiting for the lockout period to expire.

To unlock a user:

– Navigate to the portal user list and click on the three dots(…).

– By Clicking on dots the admin can see the Unlock Icon, and clicking on that they can unlock the user.[17]

Delete Contact:

– To Delete a portal user, navigate to the portal user list and click the three dots (…). By clicking on the dots the Admin can see the Delete icon and by clicking on that they can see one warning (pop-up) message.  [17]

– Click on the “Ok” button and the role will be permanently deleted from the portal. [18]

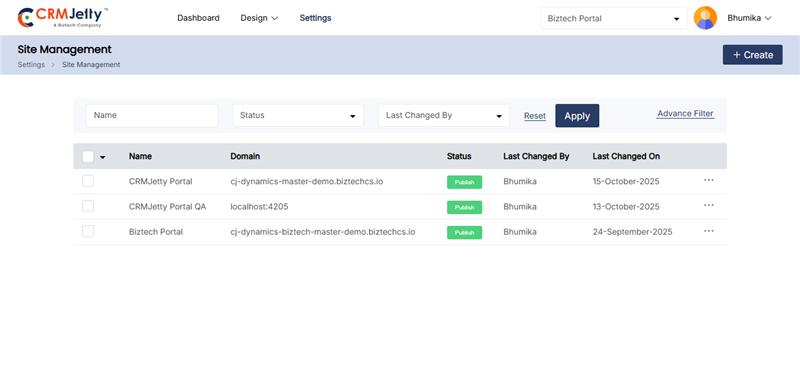

Admin can create and configure multiple sites for the current portal instance, but only one site can be published at a time. To manage sites, navigate to Settings > Portal Settings > Site Management.[1]

When Admin users log in to the Portal-Admin and authenticate the CRM, they will see the default published site. The Admin can choose to edit the default site or create a new one. [2]

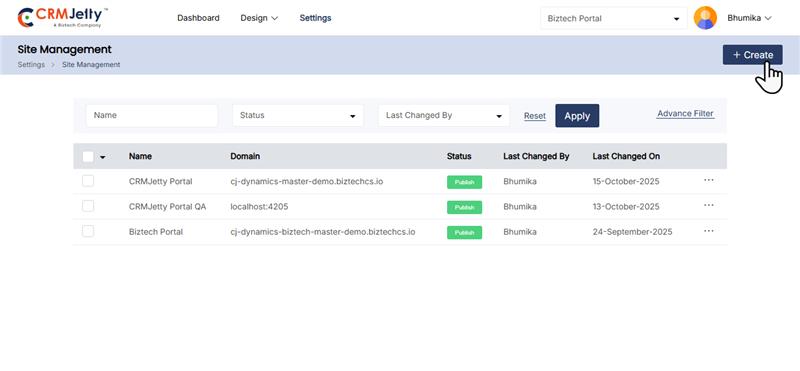

1. Click on the “Create” button on the top-right corner of the screen. [3]

2. Configure the following settings in the new site creation form.

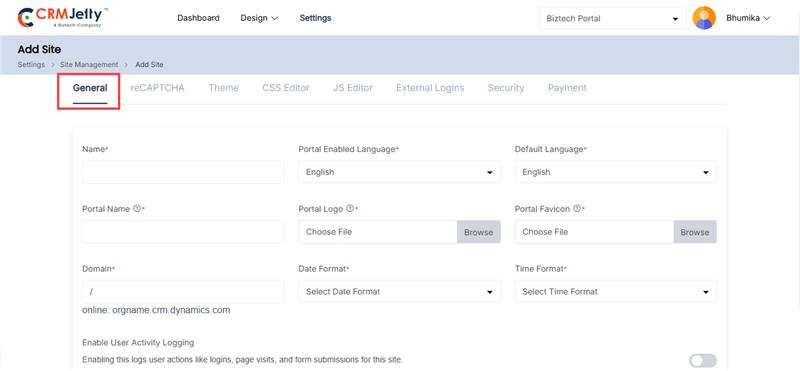

In the general settings, the Admin can add basic details such as: [1]

– Name: The name of the portal or system (e.g., CRMJetty).

– Portal Enabled Language: The language in which the portal will be available (e.g., English).

– Default Language: The default language used when no other language preference is set.

– Portal Home Page: The main or landing page of the portal.

– Portal Name: The name of the portal (e.g., Hospital).

– Portal Logo: Upload a logo image for branding, displayed on the portal.

– Portal Favicon: Upload a favicon image that appears in the browser tab.

– Date Format: The format in which dates will be displayed (e.g., MM/DD/YYYY).

– Time Format: The format in which times will be displayed (e.g., 24-hour or 12-hour).

– Site Under Maintenance: Enable this option to display a maintenance message while the site is being updated.

reCAPTCHA helps protect portal pages, forms, and widgets from spam. Admin can configure either reCAPTCHA V2 or V3 to enhance security.

General Settings

– Enable reCAPTCHA: Check the box to enable reCAPTCHA.

– Choose reCAPTCHA Version: Select between reCAPTCHA V2 or V3 based on the security requirements.

reCAPTCHA V2

– Site Key: Used to render the reCAPTCHA on the page.

– Front-View: Displays an “I’m not a robot” checkbox that users must click to validate.

– Applied To:

– Form widget

– Login widget

– Registration widget

– Forgot Password widget

– Subgrid Forms in the Form Builder

– Visible at the end of forms and widgets where reCAPTCHA V2 is enabled.

reCAPTCHA V3

– Site Key: Used to render the reCAPTCHA on the page.

– Secret Key: Used for server-side validation.

– Front-View: Verifies user actions with a score and provides a token automatically.

– Applied To:

  – Page

  – Form widget

  – Login widget

  – Registration widget

  – Forgot Password widget

  – List widget

  – Recent Activity widget

  – Case Deflection widget

  – Chart widget

  – Counter widget

  – Knowledge Base widget

  – Search widget

  – Subgrid Forms in the Form Builder

Note: Choose the version that best fits the security needs and apply it to the relevant widgets and pages within the Admin portal.

Admin can customize the site theme according to their requirements.

1. Font Customization:

– Base Font Family: Select the font family for general text.

– Heading Font Family: Select the font family for headings. [1]

2. Color Customization:

– Theme Background Color: Select the overall background color of the theme.

– Foreground Color: Select the color used for text and other foreground elements.

– Primary Color: Select the color for primary buttons, links, and accents.

– Base Font Color: Select the color for general text content.

– Heading Font Color: Select the color for headings. [1]

3. Menu Customization:

– Menu Background Color: Select the background color for the menu.

– Menu Text Color: Select the color of the text in the menu.

– Menu Hover Color: Select the color of the menu item when hovered over.

– Menu Font Size: Adjusts the font size for menu items. (Range: 14 to 30)

– Menu Font Weight: Select the font weight for menu items (e.g., normal, bold).

– Menu Alignment: Aligns the menu items (e.g., left, center, right). [2]

4. Submenu Customization:

– Submenu Background Color: Select the background color for the submenus.

– Submenu Text Color: Select  the color of the text in the submenu.

– Submenu Hover Color: Changes the color of the submenu item when hovered over.

– Submenu Font Size: Adjust the font size for submenu items. (Range: 14 to 30)

– Submenu Font Weight: Select the font weight for submenu items (e.g., normal, bold). [2]

Admin can reset the theme to the default settings using the “Reset to Default” button. [3]

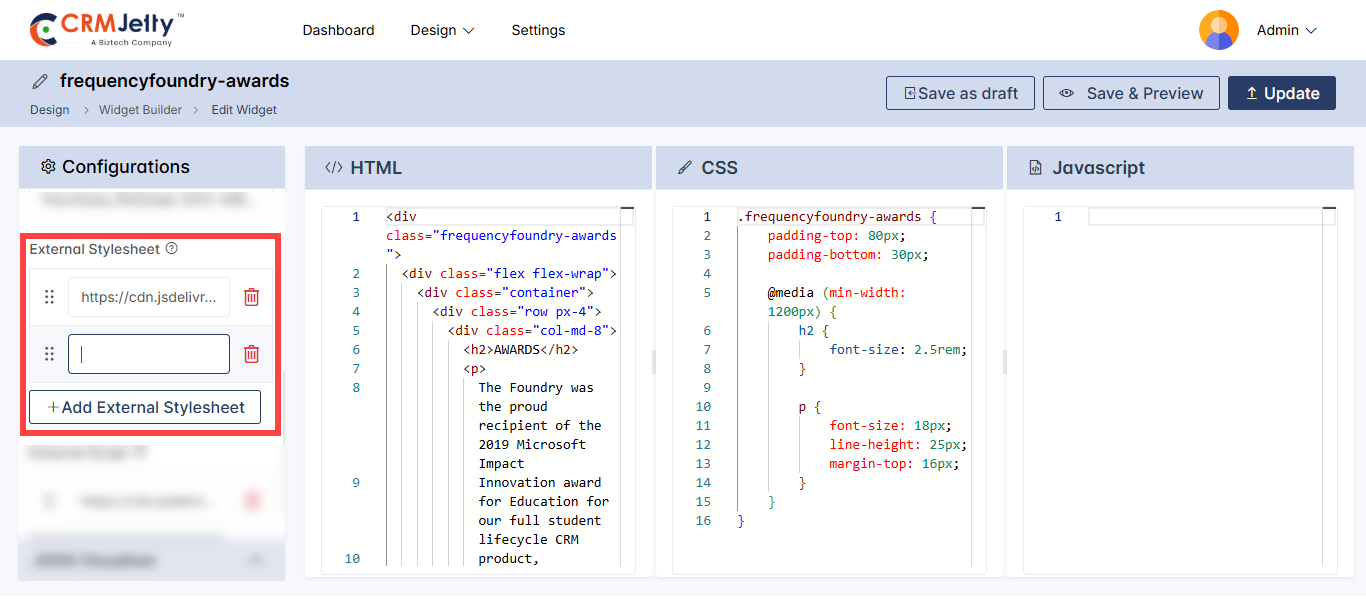

Admin can add custom CSS for the portal and apply styles to various sections. Adjust class names and CSS properties to customize different sections as needed.[1]

Note: Adjust the class names and CSS properties according to Admin -design preferences to customize different sections and weights.

Admin can manage external login accounts set up through integrations. The Admin will only see the accounts that have been configured in integrations.

1. Google :  Enable Google-based authentication.

2. Facebook : Configure and connect to Facebook for login integration.

3. Microsoft Identity: Link Admin Microsoft Identity account for authentication purposes.

4. LinkedIn : Setup and connect to LinkedIn for login integration.

Admin can enhance portal security by configuring various login methods.

1. Password Lock : Temporarily locks portal access after a set number of incorrect password attempts.[1]

Configuration:

– No. of Wrong Attempts: Maximum failed login attempts before locking the user.

– Password Lock Timer: Duration of the lockout period.

2. Two Factor Authentication (2FA):  Adds an extra security layer by requiring users to verify an OTP sent to their registered email upon login. [2]

Configuration:

– OTP Active Duration: Set the time period for which the OTP is valid.

– No. of Wrong OTP Attempts: Define how many times users can enter incorrect OTPs.

– Set OTP Timer: Set the countdown timer displayed with the OTP in the user’s email.

– Disable Resend OTP: Specify the time period during which users cannot request a new OTP.

3. Email Verification: Sends an email verification link to new portal users to confirm their registration. [3]

– Users logging in with social media accounts (Google, Facebook, Microsoft) will also receive an email verification.

4. User Approval: Requires Admin approval for new portal users, including those authenticated via social media. [4]

5.  Custom Password Complexity: Enforces password complexity rules to enhance security. [5]

Configuration:

– Password Range: Set the minimum and maximum length of passwords.

– Character Requirements: Define required character types (uppercase, lowercase, digits, special characters).

– Reset To Default: Reverts the password complexity settings to default values.

Example Password Requirements:

– Length: 8 to 16 characters.

– Uppercase Letter: At least one.

– Lowercase Letter: At least one.

– Digit: At least one.

– Special Character: At least one from the set (!, @, #, $, %, ^, &, *, (, )).

6. Password Expiration: Admin can set password expiration periods. [6]

Options: Never Expire, 1 Day, 2 Days, 1 Month, 3 Months, 6 Months, 1 Year.

Portal Front-End Behavior

When a new contact is created, the PasswordUpdateDate field is set to null by default. Depending on the selected password expiration setting, the system will handle password updates as follows:

If  “Never Expire” is Selected:

No checks related to password expiration will be performed, providing uninterrupted access without any expiration-related prompts. The following scenarios are excluded from expiration checks:

1. User registration via the Register Widget.

2. User login via the Login Widget.

3. When a user sets a new password.

4. During the Forgot Password process.

5. When a user updates their password via the Profile Widget.

6. User Account Profile updates.

If  “Never Expire” is Not Selected:

The portal enforces password expiration through the following procedures:

1. Registration via Register Widget:

a. Upon registration, PasswordUpdateDate is set to the current date (UTC).

2. Login via Login Widget:

a. Case 1: If PasswordUpdateDate is null, the system sets PasswordUpdateDate to the current date and time (UTC) in encrypted             format for both the contact and CRM user details upon successful login.

b. Case 2: If PasswordUpdateDate is not null, the system decrypts and compares it with the configured password expiry duration.

i. If Valid: The user is redirected to the Dashboard.

ii. If Expired: The user is redirected to the Set Password screen. After the user successfully updates the password, the system updates PasswordUpdateDate to the current date and time (UTC) in encrypted format for the contact.

3. Forgot Password Procedure: The process follows the same flow as Case 1 and Case 2 mentioned above, ensuring PasswordUpdateDate is appropriately set or updated after the password reset.

4. Profile Widget Password Update: After a user successfully updates their password through the Profile Widget, PasswordUpdateDate is updated to the current date and time (UTC) in encrypted format for the contact.

Note: During the password update procedure, the new password must be different from the old password. This is enforced across all scenarios, including when resetting or updating passwords.

In the Payment Settings, Admin can select from the payment accounts that have been configured through the Integrations section. Only the accounts set up by the Admin will appear in the dropdown list. [1]

To configure a payment account:

1. Open the Payment Settings.

2. Choose a payment account from the dropdown menu.

3. Click the Save button to apply the selected account.

The selected payment account will now be used for processing transactions in the portal.

The CRMJetty allows the Admin to  add rules and set conditions to display specific entity data in the front portal or control portal users’ access to certain entity data.

To create a workflow Admin needs to navigate to Settings > Portal Setting >  Workflow Management. [1]

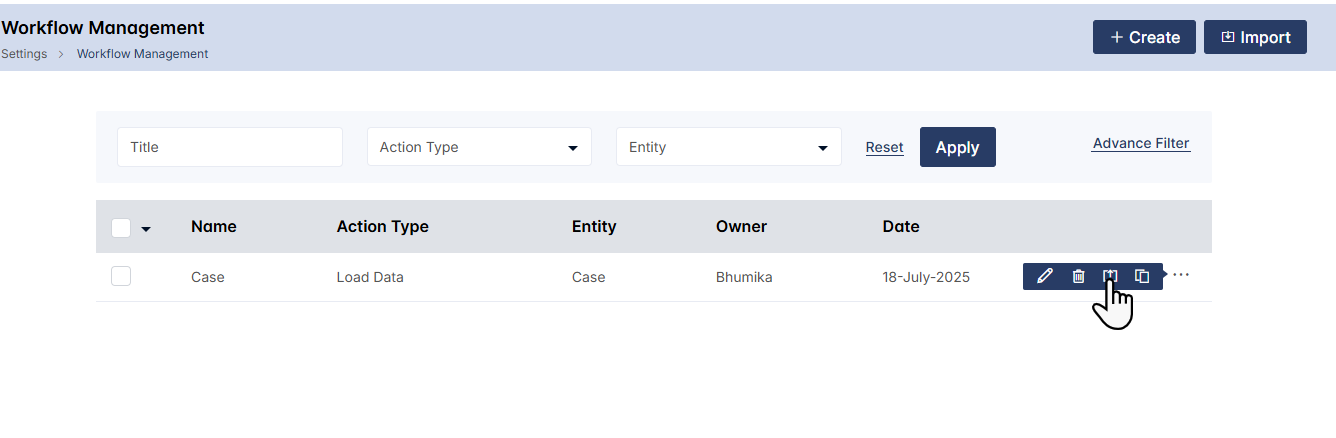

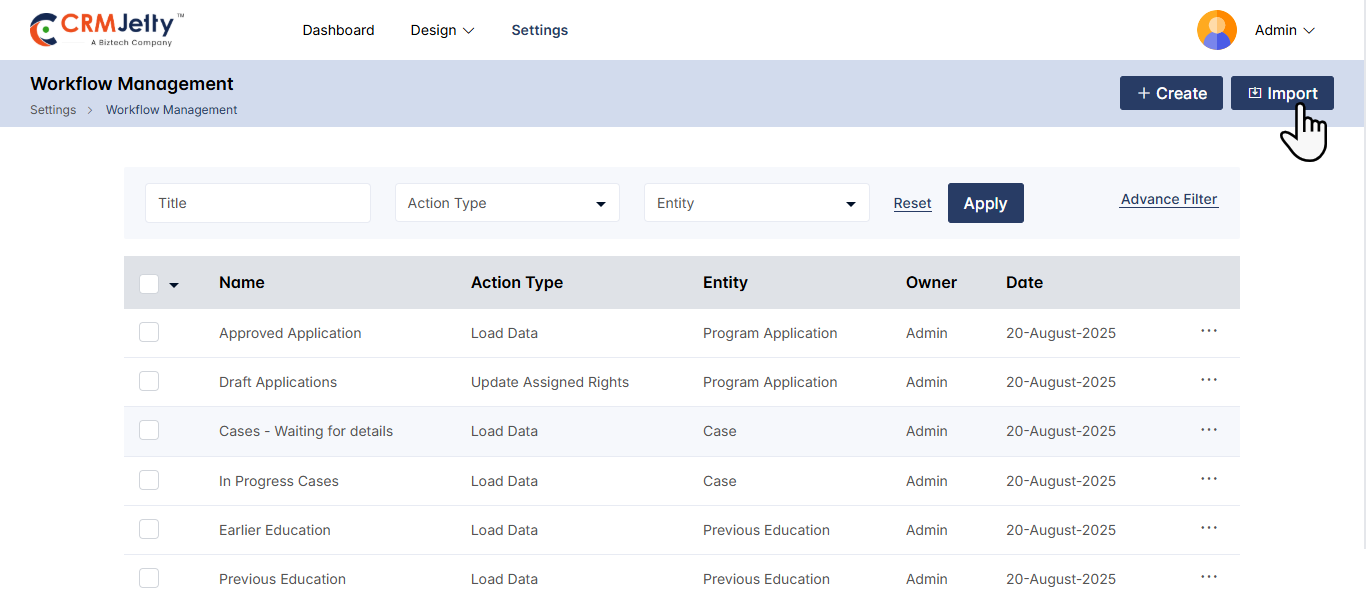

Viewing Workflows

By clicking on “Workflow Management”, the Admin will be navigated to the listing page, where the Admin can view, search, and filter workflows by Action Type, entity, Owner, and Date. [2]

Creating a Workflow:

To create a new workflow, click on the “+ Create” button, which will redirect the Admin to the Create Workflow page.  On this page, the Admin needs to configure the following details:

– Title: Enter a name for the workflow for easy identification.

– Roles: Choose the roles that this workflow will apply to.

– Entity: Select the entity to which the conditions will apply.(e.g. Case, Order)

– Action Type: The Admin can choose the action type between Load Data and Update Assign Rights. [3]

Action Types:

1. Load Data: This action allows the Admin  to filter and display only specific entity data in the customer portal.

– Data will be sorted and displayed in various formats (e.g., List view, Data card, Recent Activity, etc.) based on the rules Admin set.

– Select the fields, operators, and values to determine the data that portal users can view. [4]

2. Update Assigned Rights:  This action type is used to  manage portal users access rights (Edit, View, Delete) based on conditions. [5]

– For example: The Admin can restrict delete rights for certain records by setting specific conditions.

Setting Workflow Conditions:

After selecting an action type, the Admin can set conditions based on the specific fields.

Admin can add multiple conditions and group them as needed. Using the AND/OR options, the Admin can ensure that portal users see data or have access rights only when specific conditions are met. [6]

For example, if the Admin sets a condition to show only “In Progress” and “On Hold” cases, portal users will view only  those specific records. [7]

Managing Rules with Group Options

Select Group

The Select Group option allows Admin to group multiple conditions together. This feature is useful when Admin wants to combine conditions using either the AND or OR logic, controlling how access rights or data visibility is managed for portal users. [8]

Ungroup

The Ungroup option enables Admin to separate previously grouped conditions. If the Admin no longer needs certain conditions to be treated as a unit, they can use this option to break them apart, allowing individual conditions to be managed independently. [8]

Change to OR

When using the AND logic by default, selecting Change to OR modifies the conditions to be evaluated with an OR relationship instead. This means that if any of the conditions are true, the action (like granting access) will be executed. [8]

Delete

The Delete option allows the Admin to remove any existing condition or group of conditions. This is useful when certain conditions are no longer relevant or need to be changed entirely. [8]

Add Clause

The Add Clause feature provides Admin with the ability to insert a new condition into an existing rule set. This ensures flexibility by allowing new criteria to be added without disrupting the existing rules structure. [8]

Enabling Workflows

– To apply a workflow to a page, navigate to Design > Page, open the page in Edit mode, configure the widget, and enable the workflow.

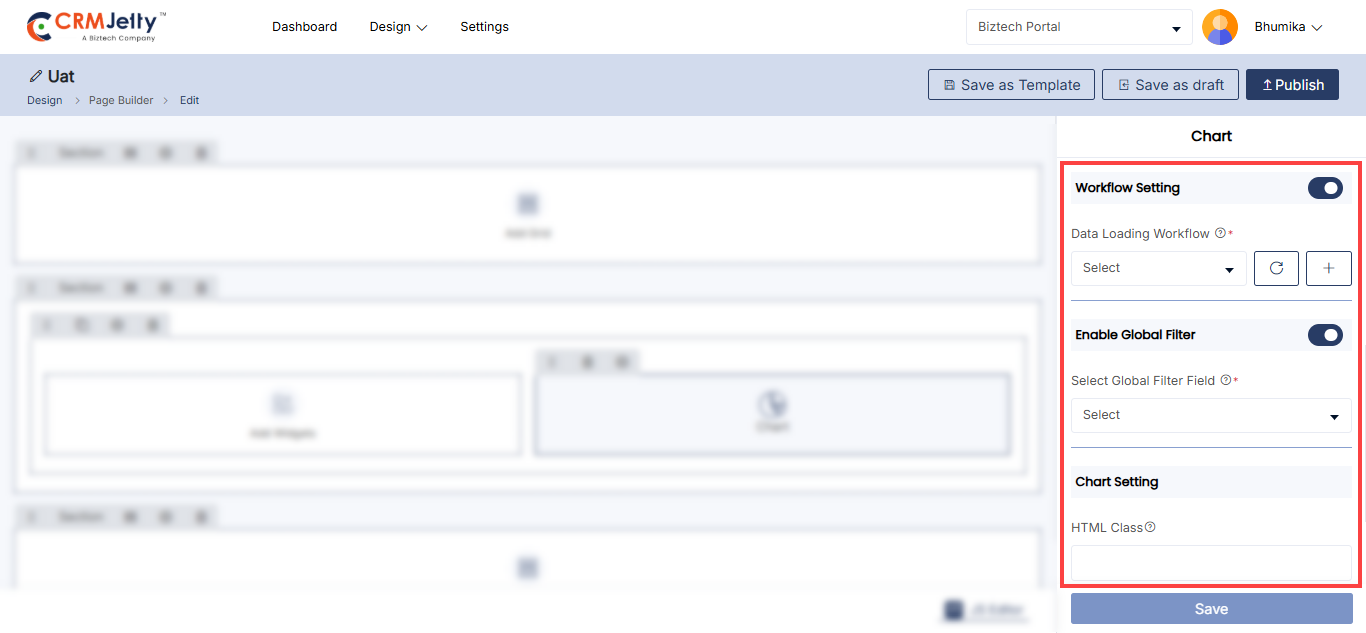

– Admin can apply workflows to various widgets like Case Deflection, Chart, Counter, Data Card, etc.

– Admin can assign workflows to a page by navigating to Design > Page. First, the Admin should configure the appropriate widget on the page and ensure that the workflow is enabled.

– Workflows can be applied to various widgets, including Case Deflection, Charts, Counters, Data Cards, and more.

Workflows in Forms and List Builders

– Workflows can also be assigned at the field level in forms and list builders, particularly for lookup-type fields. Ensure that the lookup field is  related to an entity  with an active workflow.

Widget Classification

– Widgets may support either “Load Data Workflow” or both “Load Data” and “Update Assigned Rights” workflows:

– Load Data Only: Supported by Charts, Counters, Knowledge Base, and Case Deflection widgets.

– Both Workflows: Supported by Lists, Data Cards, Recent Activity, and Forms  widgets.

Step-by-Step Workflow Example

Scenario: Configuring a Workflow for High-Priority Cases

The Admin needs to configure a workflow that displays only “High Priority” cases on the case details page, ensuring that only  these cases are visible to the support team and they cannot be deleted.

1. Create a New Workflow

– Title: “High Priority Case”

– Roles: Assign the workflow to the “Support Team” role.

– Entity : Select “Case” as the entity .

2. Action Types

Load Data:

– Condition: Select the “Priority” field, set the operator to “Equals,” and choose “High” and “Urgent” as the values. This ensures that only “High Priority” and “Urgent” cases are visible to portal users.

Update Assigned Rights:

– Condition:  Set the “Priority” field to “High” and “Urgent.”

– Action: Disable the “Delete” option.  This prevents portal users from deleting cases marked as “High Priority” or “Urgent.”

3. Assign the Workflow

To implement the workflow, navigate to Design > Page, edit the relevant page, and enable the workflow in the widget settings.

After configuring this workflow, assign it to the case details page. Once assigned, only “High Priority” cases will be visible to the support team, and the option to delete these cases will be disabled.

The Admin can enable or disable an entity in the portal using the Entity Configuration feature. Entity configuration is necessary when the Admin adds a new entity to the CRM. To enable the entity for the portal, select specific CRM entities and drag and drop them into the Portal Entity section.

Note: Before configuring the entity, Admin must first sync the CRM with the portal.

Enabling or Disabling an Entity

To sync an entity, navigate to Settings > User Settings > Entity Configurations. [1]

In this section, Admin can drag and drop “CRM Entities” into the “Portal Entities” section to sync them between the CRM and the portal.

Admin can search for a CRM entity by name or manually drag and drop it into the portal entity section.

Once the configuration is complete, click the “Save” button to add the CRM entity to the portal.

Note: If an entity does not appear in the CRM Entity list, Admin should first synchronize the CRM with the portal. Once the synchronization is complete, the entity will be visible in the CRM Entity list.

If an Admin wants to remove an entity from the portal, they can simply drag and drop the portal entity into the CRM entity list. This action will remove access to that specific data through the portal.

Note: If an Admin removes an entity from the portal, it will no longer be accessible through the portal. Additionally, this specific entity cannot be used in lists, forms, pages, etc.  However, certain entities like cases or content cannot be removed, as they are primary entities required to manage the portal.

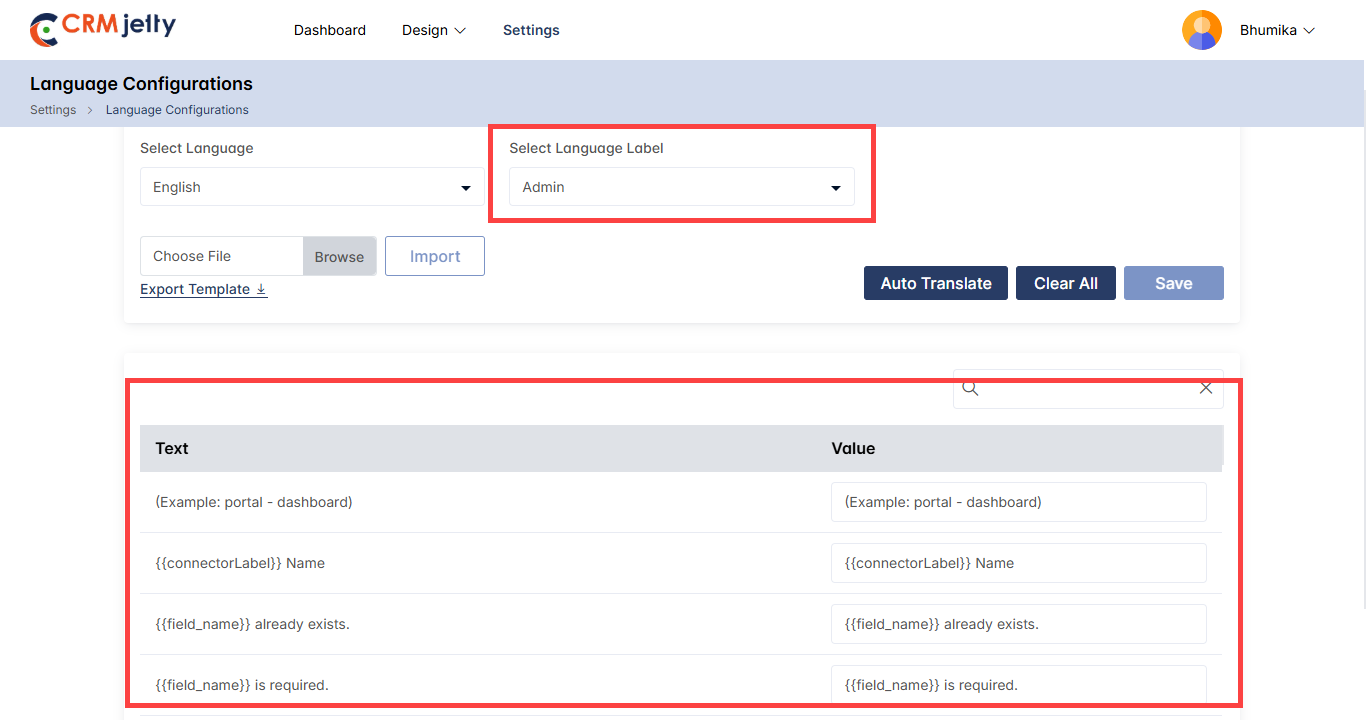

Admin can manage and customize the languages used in the portal to ensure it meets users preferences. To set up languages for the customer portal, follow these steps:

1. Navigate to Language Configuration:

Go to Settings > Portal Settings > Language Configuration. [1]

2. Enable Multi-language Support:

On this page, Admin can enable multi-language support for the portal. CRMJetty Portal provides support for 41 languages. [2]

Note: In CRM language only shows the language which is enabled into the CRM system.

The list of available languages includes:

– English

– Arabic

– Basque

– Bulgarian

– Catalan

– Chinese (Hong Kong S.A.R.)

– Croatian

– Czech

– Danish

– Dutch – Netherlands

– Estonian

– Finnish

– French – France

– Galician

– German

– Greek

– Hebrew

– Hindi

– Hungarian

– Indonesian

– Italian (Italy)

– Japanese

– Kazakh

– Korean

– Latvian

– Lithuanian

– Malay – Malaysia

– Norwegian (Bokmål)

– Polish

– Portuguese – Brazil

– Romanian

– Russian

– Serbian (Cyrillic)

– Slovak

– Slovenian

– Spanish – Spain (Modern Sort)

– Swedish

– Thai

– Turkish

– Ukrainian

– Vietnamese

Admin can enable any of these languages in the portal by dragging and dropping the respective language from the CRM Languages section to the CRMJetty portal Languages section. [3]

3. Save Configurations:

After making the necessary changes, click on the Save button. [4]

Note: English is the default language and cannot be disabled.

Multi-Language

Navigating to Multi Language, Admin will be able to configure the labels for multiple languages. [5]

The first step is to Select Language for the respective labels. [6]

Further, choose Portal or CRM from the dropdown menu of Select Language Label.

– Portal: Select this option in order to change the label in the portal.  [7.2]

 – Once Admin selects this option then Admin will get the list of the default text of the message which is currently displaying in the portal. [8]

 – On the right side Admin will get the value tab. Admin can insert the translated value of the default text on the left side. [9]

– CRM: If Admin select this option then Admin can change the language for all the text labels present in that CRM. [10]

 – For example: we have selected Case CRM.

 Now all the default text in the case CRM will be loaded below.

Admin can insert the translated value for the default text on the left side.

After configuring the language, click on the ”Save” button. Now multiple languages are enabled in the Admin portal. [11]

Import Text labels:

 Admin can also import translated text labels:

1. Export Template

First, the Admin needs to click on the Export Template button. The template file will be downloaded into the Admin system. [12]

2. Add Translations:

The template file will have information like Text Key, Default Text, and Language Specific Text. Admin has to add the translated text in the Language Specific Text column.  [13]

3. Import the file:

After adding the details in the sample file, Import the file. The value will be populated with translated labels. Now, the Admin has to “Save” the settings to make it work properly.  [14]

Auto Translate:

– Admin can also auto-translate the labels rather than translating each label manually. There is one button on the top right corner of the language setting named Add Google Translate key. [15]

– Once the button is clicked, insert the Google Translation key. [16]

– Click on the “Save” button and Admin Key will be saved successfully.

Note: The Admin must enable the “Translate API” from Google developer console for the website domain (portal domain).

Once Admin have inserted the Translate API key, Admin are able to Auto Translate the Portal labels by selecting the language(s).

Now, click on the ‘Auto Translate’ button, to translate all the labels at once based on the language selection.  [17]

Now, save the labels to make it work on the portal.

Admin can as well remove all the labels at once by clicking on the “Clear All” button and then, Admin can see all the fields would be cleared.  [19]

CRMJetty allows Admin to design and configure the listing view for various entities. Admin can create, edit, preview, and publish lists that will be used in page builders. The dynamic layout of the list view can be designed using CRM fields.

The List Builder enables Admin to create, duplicate, delete, filter, preview, and translate list views. To access these features, Admin need to navigate to Design > Lists. [1]

On the listing page, Admin can view the following columns: Title, Status, Language, Owner, Entity, and Created On dates.

The Admin can apply filters based on Title, Status, and Entity. Additionally, the Admin can use Advanced Filters to further refine the list data.

Admin can create a listing page for any entity. By clicking on the + Create button, a popup will appear where the Admin needs to insert the ‘Title’ of the list page.

Click on the “Save” button to design the listing page layout. This will redirect the Admin to the List layout design page.

From the right side, Admin can either create a new list view or use an existing ready list from the CRM.

– Create New: The Admin can choose the “Create New” option to build a list from scratch.

– Use Existing: The Admin can select the “Use Existing” option to utilize a list that has been already created in CRM. [2]

Admin needs to select the Entity for which the list view layout needs to be created. [3]

After selecting the “Entity”, Admin will see a list of fields enabled from CRM. The required fields can be drag and drop from the right to the left to add columns to the list.

There will be search functionality available for the Admin to search for a field. [1]

By clicking on the Settings icon, the Field Name and Data Type of the field will be displayed. The Admin can also edit the field details. [2]

After configuring the list, Admin can either save it as a “Draft” or “Publish” it.

– Draft: For internal use, editing, and review. Not visible to portal users. [3]

–  Publish: Final version; once published successfully, it can be used by Admin while configuring the list widget in the page builder. [4]

Note: Admin cannot use draft lists while configuring the page; the list must be published to be used in the page builder while configuring the “list widget”.

Admin have the option to select a pre-configured ‘List view’ layout from CRMJetty. By selecting the “Use Existing” option, all available ready-made list layouts (CRM entity views) will be accessible. [1]

Steps to Configure the List View:

From the View dropdown, select a ‘List view’. The fields associated with that specific list view, as configured in CRM, will be displayed. [2]

When the Admin selects a view, the list fields are automatically added to the fields in the right-side panel.

Note: The fields are added based on the CRM list, and the Admin can modify the list as needed.

Field Customization:

The Admin needs to click on the “Settings” icon to update or change the labels of any field. While editing a field, the data type will be shown. [4]

To remove a field, the Admin needs to click on the ‘delete’ icon. [5]

If the Admin wants to display a field as an image, the Admin can use the “Show as Image” option in the Field Configuration that allows the string value to be shown as an image.

Note: To ensure a proper view in the portal, the Admin should add the correct image path.

Otherwise, a dummy image will be displayed. The Admin needs to click on the “Settings icon” to open the field configurations and check mark the “Show as Image” option. [1]

Note: If the “Show As Image” checkbox is checked, the “Enable for Filter” checkbox will be disabled, as filtering is not applicable to image-type data.

After updating the Field Setting, the Admin needs to click on the Save button. [2]

 To finalize the list builder by clicking on the Publish button. The Admin can also save it as a draft by clicking on the Save As Draft button.[3]

 The Admin can also save it as a draft by clicking on the Save As Draft button.

Admin can Enable the filter option to allow portal users to filter listing records on the front portal side.

By checking the “Enable for Filter” checkbox, portal users will have a searchable option for the CRM Fields. [1]

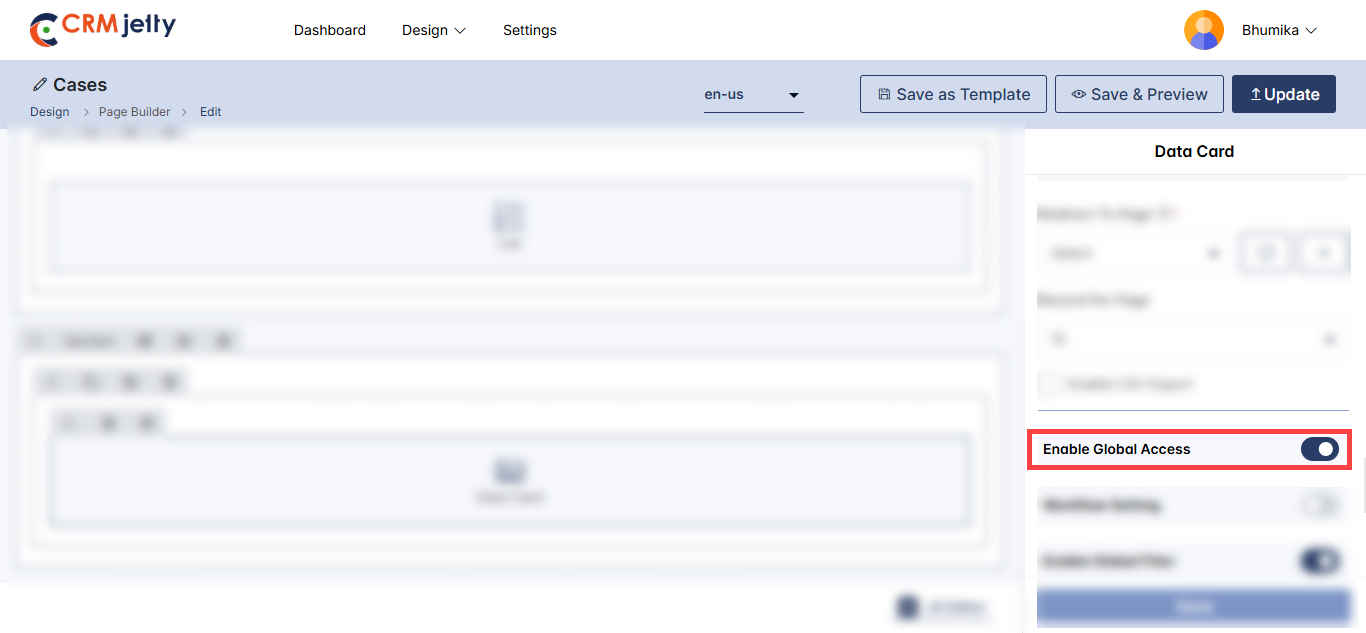

The Admin can enable filters globally for lookup fields by selecting the “Lookup Global Access” checkbox during configuration. [1]

Enabling Lookup Global Access ensures the data displayed in the lookup field is global, representing all data for the associated entit.[1]

Example:

If Customer Lookup Global Access is enabled, the lookup will display all customer data, regardless of any specific filters or restrictions.

This feature provides flexibility to access a comprehensive dataset for the selected entity.

If the field’s data type is a lookup and the “Enable for Filter” checkbox is checked, the Workflow Setting will become visible.

By clicking ‘Workflow Setting’, the “Data Load” dropdown will appear, showing the workflows (with Data Load action type and target entity of the field) created in the Workflow Management. [2]

Note: Admin will only view the specific lookup workflows

Admin can select the workflow according to the requirement.

Admin can also add a new workflow by clicking on the “+” icon. [3]

By clicking on the “+” icon, the Admin will be redirected to the “Add Workflow” page from there they can create a new workflow for that entity by entering the below details where the entity will be selected by default. [4]

After selecting the workflow, click on the Save button. [5]

The Custom Lookup View allows you to customize how lookup fields display data in the List Builder.

Steps to Configure

1. Enable the Feature

– Go to the Field Configuration Settings for the lookup field.

– Enable Custom Lookup View  [1]

2. Select Fields

– In the Custom Lookup Settings, the Admin can view all the lookup entities enabled from the CRM for the specific field. This allows the Admin to select and configure targeted entities for the lookup, ensuring personalized and relevant data display in the List Builder.

– For example, if the Account entity is enabled, the dropdown will display: [2]

– Account Name (primary field, fixed at the top). [2]

– Account Rating (additional field). [2]

Note: The Account Name field is mandatory and is automatically selected as the primary field. Its position is fixed at the top of the field list.

3. Set Sequence

– The Admin can configure these fields and their sequence for a customized lookup view. [3]

– Arrange the fields in the desired order.

– Example sequence:

  1.  Account Name

   2. Account Rating

– After all the configuration, click on the “Save” button to apply changes to the front-end view.

Note:

– Field Limit: Maximum of 5 fields (1 primary + 4 additional).

– Language Support: Names appear in configured languages or default to English.

– This setup streamlines lookups, displaying only relevant fields in your preferred order.

Admin can create or update the layout of the list view using the JavaScript Code Editor if custom JS code is available.

By clicking on the JS Editor, an editor will pop up where the Admin can add or paste the JS code. [1]

Once edited or pasted, click the “Apply” button and publish the List Builder record.

The Admin can enable the “Payment Configuration” option to facilitate the integration of payment processing within the list views. This allows the portal users to interact with payment-related fields directly from the list view, making it easier to manage transactions, view payment statuses, and perform payment actions without navigating away from the current page.

Steps to Configure Payment Options:

– Enable Payment Configuration:

 -To activate this feature, the Admin must check the “Enable Payment” toggle is active.

– Note: This feature can only be enabled if the entity includes an Amount (Currency) type field.

Button Label:

The Admin should enter the text label to be displayed as an option in the record’s context menu. [1]

Select Amount Field:

The Admin should choose the entity field to be used as the amount field for processing payments. [1]

Set Conditional Field to Enable Pay Button:

The Admin must select the entity field that determines when the Pay button will be displayed. [1]

Set Conditional Field Value to Enable Pay Button:

The Admin should choose the conditional value field that triggers the display of the “Pay” button. Multiple values can be selected as needed. [1]

Transaction Log Settings:

– The Admin should configure the Transaction Log Settings to synchronize transaction data with the CRM.

– Select Transaction entity: The Admin must choose the transaction entity to record transaction details. [2]

– Select Description Field: The Admin should choose the entity field for a short description. [2]

– Select Payment Entity: The Admin should select the field in the transaction entity to use as the payment entity field. [2]

– Select Payment Record: The Admin needs to choose the field in the transaction entity to use as the payment record field. [2]

– Select Payment Method: The Admin must select the field in the transaction entity to use as the payment method field. [3]

– Set Amount Field: The Admin should choose the field in the transaction entity for the payment amount. [3]

– Select Payment Transaction Log: The Admin needs to choose the field in the transaction entity for the Payment Transaction Log. [3]

– Select Payment Status: The Admin should select the field in the transaction entity for the Payment Status. [3]

After configuring the payment method, the Admin should “Update” the changes and publish the list.

CRMJetty provides Admin to configure a list field as a rating field. To initiate this setup, Admin must first activate the “Enable Rating” option. This function allows Admin to designate a specific field to display ratings.

Supported Data Types for Rating Field:

   – Integer

   – BigInt

   – Decimal

   – Double

In the rating field configuration, Admin can choose icons from the icon picker, with available options including thumbs and stars. Furthermore, Admin can select various colors using the color picker. [1]

Note: If a field is used in the Datacard widget, it cannot be deleted or have its rating functionality disabled via the List Builder. In the list view, portal users will only see the rating fields. They cannot modify the rating configuration, the icons and colors are only set by the Admin from the backend.

From the listing page of the ‘List’ builder records, all available languages will appear in the Language column.

Translated languages will be shown in dark-coloured buttons, while untranslated languages will appear in light-coloured buttons.

The Admin can translate the list record in two ways, one is by clicking on the light-coloured button and second is by selecting the specific record and clicking the ‘Translate’ icon from the record options.

Once the Admin clicks on the list builder record it will automatically translate to the selected language.

Admin can also translate the list layout records from the edit list. At the top, the Admin can see the“Languages” option and enabled languages will be displayed.

Select the language and click on the “Update” button, it will take a few seconds to translate all the CRM content, such as text labels and messages.

Once the list layout record is translated in a listing page you can view the language in highlighted color, which will ensure that the language is translated successfully.

Multiple List Translation

1. Translating Lists in Bulk:

The Admin can translate multiple list layout records simultaneously by selecting multiple lists. [1]

2. Language Selection:

If multiple languages are enabled, a dropdown menu will appear, allowing the Admin to select one language for translation. [2]

3. Translation Report:

After translating the selected lists, a pop-up will appear on the screen, displaying the translation status of the records/list.

Note: Ensure that all fields are translated in Settings > Portal Settings > Language Settings to guarantee proper translation of the fields.

To preview the list, Admin needs to either save the list as a draft or publish it. In both scenarios, Admin can preview the list to see how it will appear on the front end.

Note: In preview mode, Admin cannot click on any fields, the preview only displays the layout of the list. [2]

To edit a list, navigate to the portal lists and click the three dots (…). This will show the Edit icon. Clicking the icon will redirect to the edit list page. [1]

Admin can update all the details and configurations, after updating the details click on the “Update” button. [2]

To Delete a portal list, navigate to the portal list and click the three dots (…). [1]

By clicking on the dots the Admin can see the Delete icon and by clicking on that they can see one warning (pop-up) message. Click on the “Ok” button and the role will be permanently deleted from the portal. [2]

Bulk Delete lists:

To delete a multiple list at once follow the below steps:

List Selection:

The Admin should start by selecting the lists for deletion. This can be done by clicking on the checkboxes beside each list. [3]

Choosing Bulk Action:

After selecting the lists, the Admin needs to proceed to click on the bulk action checkbox. From the available options, select the “Delete” option. [4]

Confirmation Process:

A confirmation pop-up will appear after selecting the “Delete” option. To finalize and permanently remove the selected lists, the Admin must click the “OK” button. If the deletion is not required then the Admin can simply click the “Cancel” button to exit the process. [5]

1. Publishing a List:

To publish a portal list, navigate to the list and click the three dots (…). Clicking on the dots will reveal the “Publish” Icon. [1]

By clicking on the icon the list will be published and the Admin can view the success message on the right side of the page. [2]

Bulk Publish Lists

1. List Selection:

The Admin should start by selecting the lists to be published. This can be done by clicking on the checkboxes beside each list entity. [3]

2. Choosing Bulk Action:

After selecting the lists, the Admin needs to click on the bulk action checkbox. From the available options, select the “Publish” option. [4]

By clicking on the publish option the selected list will be published and the Admin can view the success message on the right side of the page. [5]

1. Duplicating a List:

– To duplicate a portal list, navigate to the list and click the three dots (…). Clicking on the dots will reveal the “Duplicate” icon. Selecting this button will initiate the duplication process.

2. Confirmation Process:

– Once the “Duplicate” button is clicked, the list will be copied, and a new duplicate list will appear in the portal.

– By clicking on the duplicate icon the selected list will be duplicated, and added to the list as “List name – Copy”.  [2]

– After duplication the Admin can view the success message on the right side of the page. [2]

Bulk Duplicate Lists

1. List Selection:

– The Admin should start by selecting the lists to be duplicated. This can be done by clicking on the checkboxes beside each list entity. [3]

2. Choosing Bulk Action:

– After selecting the lists, the Admin needs to click on the bulk action checkbox. From the available options, select the “Duplicate” option.

– By clicking on the duplicate icon the selected list will be duplicated, and added in a list as a “List name – Copy”. (e.g. Orders-Copy)[4]

– After duplication the Admin can view the success message on the right side of the page. [4]

To preview a portal list, navigate to the list and click the three dots (…). Clicking on the dots will reveal the “Preview” icon. Selecting this button will open a preview window displaying the layout of the list. [1]

Note: The Admin cannot add or modify any content within the list during this preview, it is just a list layout. [2]

– Admin can create a form for any entity. By clicking on the “+ Create” button, a popup will appear where the Admin needs to insert the ‘Title’ of the form.

– Click on the “Save” button to design the form page layout. This will redirect Admin to the Form layout design page. [1]

– The Admin can create the portal user form for the customer portal. To create the form, the first Admin needs to create a form layout for that Admin can follow: Add Section > Add Grid > Add Fields.

– Add Section: On the left side of the page, the Admin can view the sections and by clicking on the “+” icon the Admin can add a new section. Admin can edit the panel and update the “Panel Title”. After editing, click the Save button. as shown in the mentioned screenshot. [2]

– Add Grid: After adding the section the Admin needs to select the grid, for that, the Admin needs to click on the “Add Grid” button as shown in the mentioned screenshot. [3]

– By clicking on the button, the Admin can view the different grid options, by selecting the grid it will directly add to the selected section as shown in the below screenshot. [4]

– Add fields: After adding the grid the Admin adds fields to the grid, This can be done in two ways:

1. Create New: The Admin can choose the Create New option to build a form from scratch.

2. Use Existing: The Admin can select the Use Existing option to utilize a form that has already been created in CRM. [5]

Note: The grid supports only one field per box. Admin should ensure the sections are designed accordingly.

– After designing a layout, the Admin first needs to select the Entity from the drop-down list. [1]

Note: The Admin can only see entities that are synced with the portal. If the Admin cannot find the entity in the list, they must first sync the “CRM entity” to the “Portal entity.”

– Once the entity is selected, the Admin can design the layout for the Add, Edit, and Detail pages of the new Form. [2]

There are two Copy options available: “Copy to Edit” and “Copy to Detail”. The Admin can copy the ‘Add’ form design to both the ‘Edit’ form and the ‘Detail’ form. [3]

Note: If the Admin is creating a Detail type form, the options “Copy to Add” and “Copy to Edit” will not be available.

– After selecting the entity, the Admin will see a list of fields enabled from CRM. The required fields can be dragged and dropped from the right side to the left side of the grid layout.

– A search functionality is available for the Admin to find specific fields. [4]

To configure the fields, the Admin can perform the following actions:

– Field Settings: By clicking on the Settings icon, the Admin can configure following settings

– Label: Define the field’s name visible to the portal user.

– Placeholder: Insert text that appears inside the field before data entry.

– Help Tip: Provide additional guidance or information about the field.

– Default Value: Set an initial value that populates the field by default. [5]

– Attributes Configuration: The Admin can also set the field attributes such as ReadOnly and Required:

– Read Only: When this checkbox is enabled, portal users will not be able to enter data in the field.

– Required: Enabling this option makes the field mandatory, ensuring that portal users must fill it out before proceeding. [6]

The Admin can enable filters globally for form fields by selecting the “Form Global Access” checkbox during configuration. [1]

Enabling Form Global Access ensures the data displayed in the form field is global, representing all data for the associated entity. [1]

Example:

If Customer Form Global Access is enabled, the form field will display all customer data, regardless of any specific filters or restrictions.

This feature provides flexibility to access a comprehensive dataset for the selected entity.

The Custom Form View allows you to customize how form fields display data in the Form Builder.

Steps to Configure

1 Enable the Feature

– Go to the Field Configuration Settings for the form field.

– Enable Custom Form View. [1]

2. Select Fields

– In the Custom Form Settings, the Admin can view all entities enabled from the CRM for the specific field. This allows the Admin to select and configure targeted entities for the form field, ensuring personalized and relevant data display in the Form Builder.

– Example:

-If the Account entity is enabled, the dropdown will display: [2]

– Account Name (primary field, fixed at the top). [2]

– Account Rating (additional field). [2]

Note:

– The Account Name field is mandatory and is automatically selected as the primary field. Its position is fixed at the top of the field list.

3. Set Sequence

– The Admin can configure these fields and their sequence for a customized form view. [3]

– Arrange the fields in the desired order.

Example sequence:

     1. Account Name

     2 .Account Rating

After completing the configuration, click on the “Save” button to apply changes to the front-end view.

Notes:

– Field Limit: Maximum of 5 fields (1 primary + 4 additional).

– Language Support: Field names appear in configured languages or default to English.

– This setup simplifies form configurations, displaying only relevant fields in your preferred order.

The Admin can access ready-made ‘Form’ layouts that are configured from the CRM. By selecting the Use Existing option, the Admin will see all the available Form layouts (CRM entity views) and will have the ability to edit the fields as needed. [1]

Once the Admin selects any ‘Form view’ from the Existing Forms drop-down, the fields of that specific form view, as configured in CRM, will be displayed. The Admin can select existing CRM fields for the Add, Edit, or Detail page, depending on the form type. [2]

The Admin can filter existing forms by selecting specific record types. If no record types are selected, all forms for the chosen entity will be displayed. [3]

The Admin can add or remove fields as needed. Fields can be dragged and dropped from the list on the right side, and any field can be removed by clicking on the ‘delete’ icon.

When editing a field, the Admin will have access to field-related options for display to portal users in the customer portal. [4]

Admin can hide specific fields from the form by selecting the “Hidden” Toggle button in the form builder. This hidden field will not be visible on the front-end form, but it will have a default value set through the field settings. [1]

For “Edit” type forms, this feature applies only if the field is empty or null; it will automatically set the default value without altering any previously entered data.

For Example:  the “Case Type” field might be hidden in the form, but it will still appear in the list view with the assigned default value.

A rating field allows portal users to provide a numerical rating or feedback for items like products, services, or content.

This functionality can be applied to specific data types like Integer, BigInt, Decimal, and Double.

The rating is visually represented through stars or thumb symbols. Admin can configure the rating fields into various components such as Form (Add, Edit, and Detail views), List, and Data Card widgets.

Note: CRMJetty’s default configuration supports a maximum of 5-star ratings, and this setup is not adjustable by the Admin .

Rating Fields Configuration

In the Form Builder, Admin can configure the rating field by selecting the “Enable Rating” option within the field settings.

Icon Picker: Admin can choose between different icons (e.g., thumbs, stars) for the rating field using the icon picker.

Color Picker: Different colors can be selected for the icons, allowing customization of the rating field’s appearance.

Compatibility: Rating fields can be configured for Add, Edit, and Detail form types.

Note: If the Barcode input feature is enabled, Admin cannot configure the rating feature. It can not be used simultaneously on the same field.

Read-Only Setting: Admin can enable the “Read-Only” attribute to prevent portal users from modifying the rating field. This can be applied to both Add and Edit forms. [2]

Note: If this feature is enabled, the rating field will be disabled for front-end users, displaying only the default value or passing a null value if default is not set.

Front-End View for Rating Field:

On the front-end, portal users can interact with the rating field by assigning both whole and half-star ratings (e.g., 2, 4, 4.5, 1.5).

The icon and color will appear as configured by the Admin , providing a user-friendly visual representation of the rating. [3]

Admin can enhance data entry efficiency by enabling barcode or QR input within relevant forms. This feature allows portal users to scan barcodes or QR codes, speeding up data collection and reducing manual input errors.

Form Builder Settings:

In the field settings within the Form Builder, Admin can enable the “Barcode/QR Code Input” option. This setting is applicable to fields with data types such as String, Integer, Decimal, and BigInt.

The barcode/QR code input feature can be configured for Add, Edit, and Detail form types. [1]

Enable Input Text:

If this checkbox is enabled, portal users can enter data manually in addition to scanning barcodes or QR codes. If disabled, the field will be read-only, accepting input only through scanning. [1]

Note: If the rating input feature is enabled, Admin cannot configure the Barcode/QR feature. It can not be used simultaneously on the same field.

Front-End View for Barcode/QR:

When the barcode/QR code input is enabled, a camera icon will appear in the form field.

Portal users can click this icon to activate their device’s camera and scan barcodes or QR codes for efficient data input. [2]

Supported Barcode/QR Formats:

CRMJetty supports a variety of barcode and QR formats, including QR Code, AZTEC, CODE_39, CODE_93, CODE_128, ITF, EAN_13, EAN_8, PDF_417, UPC_A, UPC_E, DATA_MATRIX, MAXICODE, RSS_14, and RSS_EXPANDED.

This feature allows Admin to customize the visibility and behavior of fields based on certain conditions.

Default Field Visibility

Visible: The field is displayed on the form by default.

Hidden: The field is not displayed on the form by default. [1]

Hide Field Based on Conditions

– Admin can hide the fields based on the different conditions:

– Conditional Field: Choose the field that will determine when the current field should be hidden.

– Multi-Select Matching Category: Select categories for fields with multiple options, which will control the condition for hiding.

– Conditional Field Option: Specify the value or option from the conditional field that will trigger the field to be hidden. [2]

For Example: Admin have a form with a field called “Discount Code” that Admin wants to show only when a checkbox “Special Offer” is checked.

– Default Field Visibility: Set the “Discount Code” field to Hidden by default.

– Conditional Field: “Special Offer” (the checkbox).

– Multi-Select Matching Category: Not applicable here.

– Conditional Field Option: Checked (when the checkbox is selected).

By configuring this the “Discount Code” field will only appear when the user selects the “Special Offer” checkbox.

In a form builder if the If field’s data type is a lookup then Workflow Setting will become visible.  Admin can only configure workflow for Add and Edit forms. [1]

By clicking ‘Workflow Setting’, the “Data Load” dropdown will appear, showing the workflows (with Data Load action type and target entity of the field) created in the Workflow Management.

Admin can select the workflow according to the requirement. [2]

Admin can also add a new workflow by clicking on the “+” icon.

After selecting the workflow, click on the Save button.

Admin can enhance the user experience in the customer portal by configuring a progress bar for specific dropdown fields in any entity form. This feature is applicable to dropdown-type fields such as Picklist, State, and Status.

1. Enable Progress Bar:

– In the Field Configuration section, locate the “Show as Progress Bar” option and enable it to display the progress bar to portal users.

2 . Configure Field Options:

– Set the sequence of the available options for the selected dropdown field by dragging the options up or down to rearrange them. [1]

Note: The progress bar status reflects the “Advanced Field Management” settings, which control the field options visible to portal users.

Admin can display the form content of any entity in a step-by-step manner in the customer portal by enabling the “Multi-Step Form” option. This feature allows portal users to navigate through the form in sections, making it easier to manage complex forms.

1. Enable Multi-Step Form: In the Form configuration panel under “Web Forms,” check the “Enable Multi-Step Form” option.

2. Configure Navigation Buttons:

– Previous Button Label: Set the label for the button that allows users to navigate back to the previous section of the form.

– Next Button Label: Set the label for the button that allows users to move to the next section of the form. [1]

3. Section Configuration:

– The form will be divided into sections based on the configuration. Users will navigate through these sections step-by-step.

4. Edit Navigation Button Labels:

– In the Edit form settings, customize the labels for the Previous and Next buttons to better fit the needs.

Once you setup multi step form configuration “Update or Publish” the form.

Note: The Multi-Step Form feature is available for Add/Edit type forms and can be used with both “Create New” and “Use Existing” CRM layouts. Once configured, the form can be placed in the Page Builder, and its multi-step navigation can be previewed.

This configuration allows the Admin to link data or records where one entity (the parent) is associated with one or more other entities (the children). [1]

Note: The Parent-Child Link feature is only enabled in the Add Form Type. [1]

On the add from configuration, the Admin can view the parent-child link toggle button Admin needs to click on to activate the feature. After that Admin needs to configure the following details:

Child Entity: Choose the entity that will act as the child in the relationship.

Relationship Type: Select the type of relationship that defines how the parent and child entities will be connected.

Create Unique Records On: Identify the field that will ensure each record is unique.

Fields Display: The fields will be shown based on the selected relationship type.

Step-by-Step Example for Parent-Child Link:

Scenario: Suppose the Admin configuring a Customer Order Management System

Then Admin needs to configure the following fields:

Child Entity: The Admin needs to select “Order Items” as the child entity, which will be linked to the “Customer Order” parent entity.

Relationship Type: The Admin chooses “Order (Customerid)”, indicating that each customer order can have multiple order items.

Create Unique Records On: The Admin identifies the “Order ID” field to ensure each order record is unique.

Fields Display: Based on the Order (Customerid) type, fields like “Item Name,” “Quantity,” and “Price” will be displayed for selection in the form.

The Admin can enable the “Payment Configuration” option to integrate payment processing directly within the form. This setup allows portal users to interact with payment-related fields within the form itself, facilitating easier management of transactions, viewing payment statuses, and performing payment actions without needing to leave the form page.

Note: The payment configuration feature is enabled for the Add -Edit -Detail Form Type.

Steps to Configure Payment Options:

To enable payment functionality for a specific entity’s form record, follow these steps:

1. Enable Payment:

Enable the toggle button from the right side of the panel “Payment configuration” to activate payment options. [1]

2. Button Label:

Enter the text the Admin wants to display as a title of the field.

3. Set Amount Field:

The Admin should choose the field that represents the payment amount.

4. Set Conditional Field to Enable Pay Button:

The Admin must select the conditional field that will control when the Pay button gets enabled.

5. Set Conditional Field Value to Enable Pay Button:

The Admin needs to select the conditional value that will trigger the Pay button. Multiple values can be chosen if needed.

6. Transaction Log Settings:

The Admin should configure settings for syncing transaction data with the portal.

7. Select Transaction Entity:

The Admin must choose the entity where transaction details will be stored.

8. Select Description Field:

The Admin should select the field to be used for a short description of the transaction.

9. Select Payment Entity:

The Admin must pick the field from the transaction entity that will serve as the payment entity.

10. Select Payment Record:

The Admin should choose the field in the transaction entity to be used as the payment record.

11. Select Payment Method:

The Admin needs to select the field that represents the payment method.

12. Set Amount Field:

The Admin should identify the field where the payment amount will be recorded.

13. Select Payment Transaction Log:

The Admin must choose the field that will act as the Payment Transaction Log.

14. Select Payment Status:

The Admin needs to select the field that will display the Payment Status.

Once all configurations are complete, the Admin should click the Save button at the end of the process. Finally, Publish the page to apply these changes in the customer portal.

The Admin can create or update the layout of the form view using the JavaScript Code Editor if there is any custom JS code. [1]

By clicking on the Code Editor, an editor will pop up where the Admin can edit or paste the JS code. Once the code is edited or pasted, the Admin should click the Apply button and publish the Form builder record. [2]

Additionally, the Admin can edit or paste JavaScript code to modify the UI and appearance to match preferences or align with the portal’s theme.

From the listing page of the ‘Form’ builder records, all available languages will appear in the Language column.
Translated languages will be shown in dark-coloured buttons, while untranslated languages will appear in light-coloured buttons. [1]

Admin can translate the Form record by clicking on the light-coloured button. Once clicked, the Form builder record will automatically translate to the selected language. [1.1]

Admin can also translate the form layout records from the edit form page. At the top, the “Languages” option and enabled languages will be displayed.

Once the form layout record is translated from the listing page or the page layout edit page, it will take a few seconds to translate all the CRM content, such as text labels and messages. [2]

Multiple Form Translation

1. Translating Forms in Bulk:

–  Admin can translate multiple form layout records simultaneously by selecting multiple forms. [3]

2. Language Selection:

– If multiple languages are enabled, a dropdown menu will appear, allowing the Admin to select one language for translation. [4]

3. Translation Report:

–  After translating the selected forms, a pop-up will appear on the screen, displaying the translation status of the records/forms. [5]

Note: Ensure that all fields are translated in Settings > Portal Settings > Language Settings to guarantee proper translation of the fields.

To preview the form, the Admin needs to either save the form as a draft or publish it. In both scenarios, the Admin can preview the form to see how it will appear on the front end. [1]

Note: In preview mode, the Admin cannot click on any fields; the preview only displays the layout of the form.

To edit a form, navigate to the portal forms list and click the three dots (…). This will show the Edit icon. Clicking the icon will redirect the Admin to the edit form page.

The Admin can update all the details and configurations. After updating the details, click the Update button. [2]

To delete a portal form, navigate to the portal form list and click the three dots (…). Clicking on the dots will reveal the Delete icon. Clicking on this will display a warning (pop-up) message.

Click the “Ok” button, and the form will be permanently deleted from the portal. [1]

Bulk Delete Forms

1. Form Selection:

To delete multiple forms, the Admin needs to select multiple forms using the checkboxes beside each form. [2]

2. Choosing Bulk Action:

After selecting the desired forms, click the bulk action checkbox, then choose the “Delete” option from the available actions. [3]

3. Confirm Deletion:

A confirmation pop-up will appear. To finalize and permanently delete the selected forms, click OK. To cancel the deletion, click Cancel. [3]

1. Drafting a Form:

– To draft a portal form, navigate to the form list and click the three dots (…). Clicking on the dots will reveal the “Draft” icon. By clicking on this icon, the form will be saved as a draft, and the Admin can view the success message on the right side of the page. [1]

Note: Draft forms are disabled for the customer portal. To use these forms, the Admin must publish them.

2. Bulk Draft Forms:

– The Admin should start by selecting the forms to be drafted. This can be done by clicking on the checkboxes beside each form entity.

– After selecting the forms, the Admin needs to click on the bulk action checkbox. From the available options, select the “Draft” option. [2]

– By clicking on the draft option, the selected forms will be saved as drafts, and the Admin can view the success message on the right side of the page.

1. Publishing a Form:

– To publish a portal form, navigate to the form list and click the three dots (…). Clicking on the dots will reveal the “Publish” icon. By clicking on this icon, the form will be published, and the Admin can view the success message on the right side of the page. [1]

2. Bulk Publish Forms:

– The Admin should start by selecting the forms to be published. This can be done by clicking on the checkboxes beside each form entity.

– After selecting the forms, the Admin needs to click on the bulk action checkbox. From the available options, select the “Publish” option.

– By clicking on the publish option, the selected forms will be published, and the Admin can view the success message on the right side of the page.

1. Duplicating a Form:

– To duplicate a portal form, navigate to the form list and click the three dots (…). Clicking on the dots will reveal the “Duplicate” icon. Selecting this button will initiate the duplication process. [1]

– Once the “Duplicate” button is clicked, the form will be copied, and a new duplicate form will appear in the portal. The duplicated form will be named “Form Name – Copy” (e.g., Add Orders-Copy). [2]

– After duplication, the Admin can view a success message on the right side of the page.

2. Bulk Duplicate Forms

– The Admin should start by selecting the forms to be duplicated. This can be done by clicking on the checkboxes beside each form entity.

– After selecting the forms, the Admin needs to click on the bulk action checkbox. From the available options, select the “Duplicate” option. [3]

– The selected forms will be duplicated and added as “Form Name – Copy” (e.g., Add Orders-Copy). After duplication, the Admin can view a success message on the right side of the page. [4]

To preview a portal form, navigate to the formlist  and click the three dots (…). Clicking on the dots will reveal the “Preview” icon. Selecting this button will open a preview window displaying the layout of the form.

Note: The Admin cannot add or modify any content within the form during this preview; it is just a form layout.

The admin can use the Sub-Grid widget to display forms in a sub-grid view by simply dragging and dropping the Sub-Grid widget onto the designated grid area. [1]

Sub-Grid Configuration

By clicking on the field Settings icon, the Sub-Grid Configuration panel will open up.

– Label: Enter the label for the sub-grid section.

– Select Entity: Choose the entity for which the sub-grid section will be created.

– Select Relationship: Select the relationship (entity) to associate with the chosen entity form.

– Select List View: Pick the list view to display for the selected relationship type in the sub-grid. [2]

Managing Sub-Grid Access

Admin can manage sub-grid access through Access Settings by enabling or disabling the options for creating, editing, and deleting records.

Allow Creating Records:

– Button Label: Insert the label to display for creating records on the portal.

– Select Form: Choose the form that will appear on the portal when creating records.

– Select Record Type: All active record types related to the selected entity will be available here. [3]

Note: If there are no record types in CRM, the Select Record Type field will not be visible.

Allow Editing Records:

– Button Label: Insert the label to display for editing records on the portal.

– Select Form: Choose the form that will appear on the portal when editing a record. [4]

Allow Detail Redirection:

– Button Label: Insert the label to display for viewing record details on the portal.

– Select Page: Choose the page to which users will be redirected when they click the “Detail” button. [5]

Allow Deleting Records:

– Button Label: Insert the label to display for deleting records on the portal.

– Submit Button Label: Insert the label for the submit button. [6]

Workflow and Access Configuration

– Enable Workflow: This option activates workflows for the sub-grid section.

– Data Loading Workflow: Includes workflows with data load actions and the selected entity for the sub-grid.

– Update Assign Rights Workflow: Contains workflows with Update Assigned Rights actions and the selected entity for the sub-grid. [7]

– Enable Global Access: Enable this feature to allow portal users to access global data. If unchecked, portal users will only access their records within the sub-grid. [8]

Note: If global access is enabled, users will have a filter option to show either “My Records” or “All Records.”

– Enable reCAPTCHA: Activate reCAPTCHA for the sub-grid in the portal. [8]

Note: The sub-grid option is only available for edit and detail form types.

Example: In the Project form, users will see a “Project Tasks” section where they can view, add, edit, or delete tasks associated with the project. If Global Access is enabled, a filter option appears, allowing users to toggle between “My Tasks” and “All Tasks”. This configuration ensures that users can manage related tasks directly within the context of the project they’re working on, making it easier to keep track of project progress.

Front-side view subgrid:

The Subgrid Form View provides a streamlined, interactive interface, displaying associated records or related entities in a table format within the main entity form. This subgrid view enables users to quickly access, review, and manage linked data without navigating away from the main form.

Admin can use the Notes & Attachment Widget to display notes and attachments in a form view. Simply drag and drop the Notes & Attachment widget onto the designated grid area.

Configuration Settings:

– Label: Admin insert the label for the section (e.g., “Notes”).

– Allow Creating Records:  Admin enable this option to allow portal users to create records.

– Button Label:  Admin insert the label for the create button (e.g., “Create”).

– Allow Deleting Records:  Admin enable this option to allow portal users to delete records.

– Default Accordion Behavior: Admin select between Expanded or Collapsed view.

– Enable Global Access:  Admin allows portal users to access global data or restrict them to their records.

– Select Design Layout: Admin select the layout between “Chat Style” or “Grid Style”.

The Design Layout option determines how notes and attachments are shown on the portal:

1. Chat Style:

Look: Notes and attachments appear like chat messages.

Example: Imagine a support portal where users can leave comments or notes about an issue. Using the Chat Style, each note would appear as a message, making it easy to follow the discussion. [3]

2. Grid Style:

Look: This layout organizes notes and attachments in a grid or table format, with rows and columns.

Example: In a management portal, where users upload documents and notes related to tasks, the Grid Style allows users to see all files and notes in a structured, side-by-side view. [4]

If Admin is designing a form for an entity that includes products, Admin can enable the Product widget for any form type in the customer portal. Simply drag and drop the Product widget onto the designated grid area. [1]

Steps to Configure the Product Widget:

1. Accessing the Product Widget:

– When designing a form for an entity with associated products, the Product widget will be available.

– Click on the field’s Settings icon to open the Product Configuration panel.

2. Configuration Options:

– Label: Enter the label that will be displayed for the product section on the portal. [2]

– Allow Creating Records: Enable this option to allow portal users to create new product records.

– Button Label: Enter the label for the create button (e.g., “Add Product”).

– Allow Deleting Records: Enable this option to allow portal users to delete existing product records.

– Quantity Update: Allow users to update product quantities directly from the portal.

– Default Accordion Behavior: Choose how the list view data appears to portal users:

– Expanded: The section will be open by default.

–  Collapsed: The section will be closed by default.

Example: If Admin are creating an order form where users can add products, Admin would enable the Product widget, label it as “Order Items,” and configure it so users can add or delete items and adjust quantities directly from the portal. The product section might be set to Expanded so that users see their order items as soon as they open the form.

Front-view Product widget:

The Product Widget front-side view provides a compact yet comprehensive display for showcasing product details, designed for easy browsing and quick actions by users. This widget is ideal for displaying products in a grid or list format within a larger page, such as a product catalog or dashboard. [3]

Admin can use the Text widget to add and customize text content within any form layout. This widget allows Admin to insert and design text with various settings to enhance the appearance and functionality of the portal pages.

Steps to Configure the Text Widget:

1. Adding the Text Widget:

– Simply drag and drop the Text widget onto the designated grid area.

2. Configuring the Text:

– After placing the widget, click on the Settings icon to open the Text Configuration panel.

– Text Content:Insert the desired text that should appear in this section.

– Styling Options: Admin can apply various styling options to the text, such as font size, color, alignment, and formatting (bold, italic, underline).

– Advanced Options: Admin may also have options to add hyperlinks, bullet points, or numbered lists to structure the content effectively. [2]

Example:  If Admin creates an “About Us” page, Admin can use the Text widget to add a detailed company description. By using the settings, Admin can make certain parts of the text bold to highlight key points, adjust the font size for readability, and align the text to center it on the page.

Front view text widget

The Text Widget front-side view is a flexible, content-rich widget designed to present text-based information attractively and accessibly. This widget can be used for announcements, descriptions, updates, or any textual content within a webpage or portal. [3]

The SharePoint widget integrates document management into the portal, allowing users to upload files, create new folders, and organize documents directly. Admin can configure titles, labels for upload and folder creation buttons, and set the default display behavior for ease of use. [1]

Steps to Configure the Sharepoint Widget:

– Title: Set to “Documents” to display a label for document management.

– Upload Button Label: Label as “Upload File” for user-uploaded documents.

– New Folder Button Label: Label as “New Folder” to allow folder creation in SharePoint.

– Default Accordion Behavior:

– Expanded: Accordion is open by default.

– Collapsed: Accordion is closed by default.

Front-view sharepoint widget:

The “Documents” title is displayed at the top, followed by buttons for uploading files and creating new folders. The accordion section shows folders and documents, allowing users to navigate and manage their SharePoint files easily. The accordion is expanded by default, so users can immediately see the contents. [3]

To initiate the creation of a new page, follow these steps:

– Page Title: Enter a descriptive and relevant title for the page. [1]

– Page URL Slug: Enter the URL slug determines the page’s address and should be unique and descriptive. Example: portal-dashboard [1]

– Page Access: Admin can create a page in two ways:

1. Authenticate: Select this option if the page should be accessible only to users who have logged in. [1]

2. Public: Choose this option if the page should be visible to everyone without requiring a login. [1]

– Page Layout: Admin can choose from different layouts which is mentioned below:

– Default Layout: Select this to use the standard layout configuration.

– 1 Column, Header, Footer: This layout includes a single column, with a header and footer. Ideal for simple page designs. [1]

– Left Sidebar, Header, Footer: This layout features a left sidebar along with a header and footer, useful for pages that require additional navigation or content sections. [1]

– Right Sidebar, Header, Footer: Similar to the left sidebar layout, but with the sidebar positioned on the right side. [1]

– Select Template: Alternatively, the Admin can choose from pre-designed templates that offer predefined layouts and styling options. [1]

Admin can quickly create a page by utilizing pre-designed templates. This method ensures consistency and saves time. To create a page using template Admin needs to follow the below steps:

Step 1: Select a Template

The First Admin needs to select the template from the drop-down. After choosing a template, click the “Next” button to proceed to the pre-designed page layout. [1]

Step 2: Customize the Page Layout

If modifications are needed, the Admin can edit the page layout, adjusting sections, widgets, and other elements to meet specific requirements.

Once finalized, the page Admin either “save as template” or directly publish the page by clicking on the “publish” button. [1]

Step 3: Save and Manage Templates

If the Admin saves the page as template then Admin can view the new template in the ‘Templates’ section, where it will be listed as a new record. [1]

Note: If Admin saves a designed page as a template with a name that already exists, the new template will be saved with the same name followed by a ‘copy’ suffix. (eg: page – copy)

After setting up the page, Admin can create a page layout for the customer portal by following these steps:

1. Add Section: On the left side of the page, click the “+” icon to add a new section.

– Edit Panel: Update the “Panel Title” as needed and click the Save button to apply the changes.

2. Add Grid: After adding a section, click the “Add Grid” button.

– Grid Options: A selection of grid options will be displayed. Choose a grid layout to add to the selected section. [2]

3. Add widget: After adding the grid, the Admin can enhance the page by adding widgets. There are two categories of widgets available: [3]

Admin can create or update the layout of the Page view using the JavaScript Code Editor for custom JS code.

To access the editor, click on the Code Editor button. This will open a popup where the Admin can edit or paste JavaScript code. After making the desired changes, click the Save button, and then publish the Page. [2]

Additionally, the Admin can edit or paste JavaScript code to modify the UI and appearance to match preferences or align with the portal’s theme.

Admin can further customize page sections and widgets by adding custom HTML IDs and Classes. [1]

To begin customization, locate the ‘Settings’ icon at the top right corner of the section, next to the delete icon. Clicking on this icon opens the “Section Configuration” panel on the right side of the screen. [1]

Within the panel, two controls are available:

– HTML Class: Add multiple classes separated by commas (,). These classes can be applied to multiple elements, allowing for repeated usage on a single page. [1]

– HTML ID: Add a unique ID for the section. The ID will automatically be prefixed with “custom-”. An ID is unique and can only be applied to one element on a page. [1]

– Card View: Enable the “Card View” option if you prefer the banner to be displayed as a card, providing a structured and compact appearance. [1]

Important Notes:

– Ensure that classes and IDs are added without spaces. If special characters are needed, use only hyphens (-) or underscores (_).

– After clicking the Save button, the custom HTML Class and ID will be saved.

– Admin can apply these custom classes and IDs in JavaScript to further customize the page sections.

From the listing page of the ‘Page’ builder records, all available languages will appear in the Language column.

Translated languages will be shown in dark-coloured buttons, while untranslated languages will appear in light-coloured buttons.

Admin can translate the Page record by clicking on the light-coloured button. Once clicked, the Page builder record will automatically translate to the selected language. [2]

Admin can also translate the page layout records from the edit page. At the top, the “Languages” option and enabled languages will be displayed. [3]

Once the page layout record is translated from the listing page or the page layout edit page, it will take a few seconds to translate all the CRM content, such as text labels and messages.

Multiple Page Translation

1. Translating Pages in Bulk:

Admin can translate multiple page layout records simultaneously by selecting multiple pages. [4]

2. Language Selection:

If multiple languages are enabled, a dropdown menu will appear, allowing the Admin to select one language for translation. [5]

3. Translation Report:

After translating the selected pages, a pop-up will appear on the screen, displaying the translation status of the records/pages.

Note: Ensure that all fields are translated in Settings > Portal Settings > Language Settings to guarantee proper translation of the fields.

To edit a page, navigate to the portal pages list and click the three dots (…). This will show the Edit icon. Clicking the icon will redirect the Admin to the edit page. [1]

The Admin can update all the details and configurations. After updating, click the “Update” button. [2]

To delete a portal page, navigate to the page list and click the three dots (…). Clicking on the dots will reveal the Delete icon. Clicking this will display a warning pop-up message.

Click the OK button to permanently delete the page from the portal. [1]

Bulk Delete Pages

The Admin should start by selecting the pages for deletion. This can be done by clicking the checkboxes beside each page.
